Information Decals

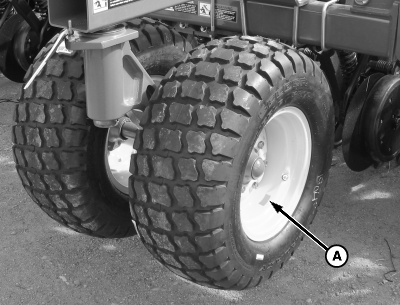

A71377-UN-03MAY11

A - Decal, Wheel Bolt Torque

(See Check Wheel Bolts and Bearings in the Servicing section.)

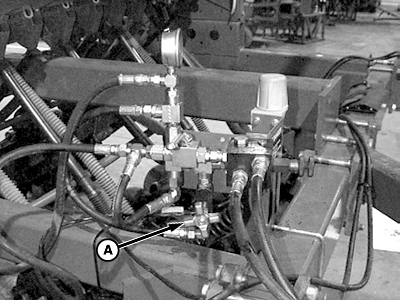

A71379-UN-03MAY11

A - Valve, Open/Closed Center

OPEN VALVE FOR CLOSED CENTER SYSTEMS

CLOSE VALVE FOR OPEN CENTER SYSTEMS

(See Adjust Opener Downforce—Tractors with Closed/Open Center Hydraulic Systems in Operating the Machine section.)

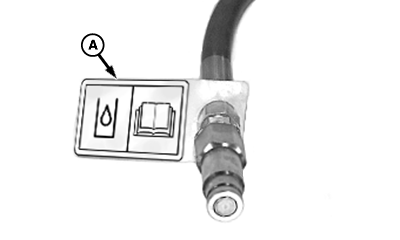

A85534-UN-09MAR15

A - Decal, Case Drain

Hydraulic motor case drain line.

This hose must be connected during hydraulic motor operation to avoid motor failure.

(See Case Drain and Hydraulic Motor Requirements in Preparing the Tractor section.)

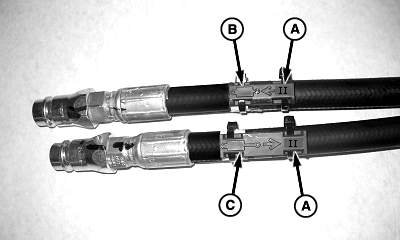

A71412-UN-05MAY11

A - SCV Number

B - Flow Direction

C - Flow Direction

(A) Identifies tractor SCV circuit to connect to.

(B and C) Identifies “flow direction” and connects to the matching ports on the tractor.
