Attach Tow-Behind Cart to Air Seeder

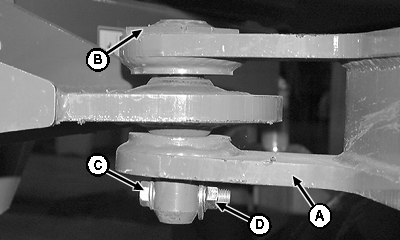

  1. A42142A
    A42142A-UN-28JUL98

    A - Hitch

    B - Pin

    C - Cap Screw—M12 x 50

    D - Lock Nut

    Attach hitch (A) to cart using pin (B) with cap screw (C) and lock nut (D) on bottom.


  2. A42143
    A42143-UN-22OCT97

    A - Storage Stands

    B - L-Pin and Quick-Lock Pin

    Use storage stands (A) to support outer end of hitch tubes during assembly. Position stands for ground contact and install L-pin (B) and quick-lock pin.

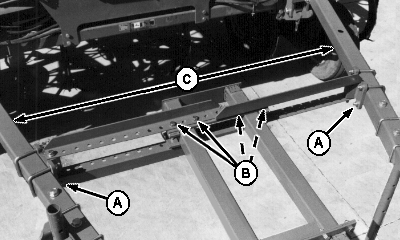

  3. A42144
    A42144-UN-22OCT97

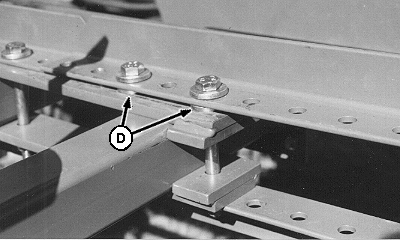

    A42145
    A42145-UN-22OCT97

    A - Hardware

    B - Hardware

    C - Hitch Tube Ends

    D - Flat Washers

    Loosen hardware (A) at cross-support outer brackets.


  4. Remove hardware (B) from cross-support center connections.

  5. Tube to frame hardware must be loosened for the following step.

    Spread hitch tube ends (C) into alignment with rear bar brackets (previously installed on seeding tool).

  6. Final attachment and tightening of cross-support can be delayed until hitch tubes are attached to rear bar brackets.

    Extend both sides equally, align holes in cross-support brackets, and attach with previously removed hardware (B). Use additional flat washers (D) (provided) to fill gap between upper bracket and connecting strap. Lower bracket rests flat on strap and does not need spacer washers. Leave hardware loose until instructed to tighten.

  7. Slide cross-support assembly as far forward as possible and tighten hardware (A) at cross-support outer brackets.

  8. Tighten hardware at cross-support center connections.

  9. N43984
    N43984-UN-11DEC91

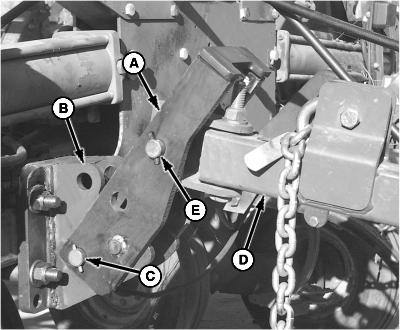

    A48630
    A48630-UN-29JAN02

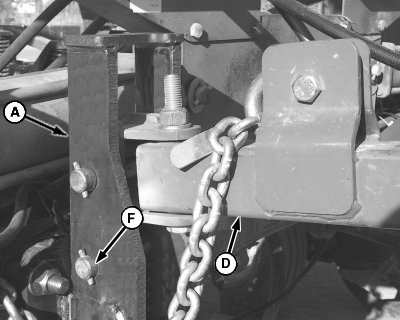

    A53839
    A53839-UN-09FEB04

    A - Arm

    B - Hitch Bracket

    C - Drilled Pin

    D - Hitch Tubes

    E - Drilled Pin

    F - Drilled Pin

    Install new arms (A) provided on hitch brackets (B) with drilled pins (C) and quick-lock pins.


  10. Use a signal person to direct tractor and seed cart movement. Seed cart blocks tractor operator's view of seeding tool hitch point. Know hand signals and what each signal means before moving. Move slowly and follow signal person's directions to avoid a crushing accident which could cause severe injury or death to someone. Do not stand between air cart and implement while cart and tractor are in motion.

    Back seeding tool toward cart and align hitch tubes (D) with arms (A).

  11. Hitch tubes attach in top holes on arms.

    When top holes in arms and hitch tubes align, install drilled pin (E) and quick-lock pins.

  12. With both hitch tubes attached to arms, back seeding tool toward cart to raise arms to vertical position.

  13. When middle holes in arms and hitch brackets align, install drilled pin (F) and quick-lock pins.

  14. Safety chains help control drawn equipment in case accidental separation from drawbar occurs during transport. A runaway machine could cause severe injury or death to someone. Provide only enough slack in chain to permit turning.

    Verify proper safety chain rating.

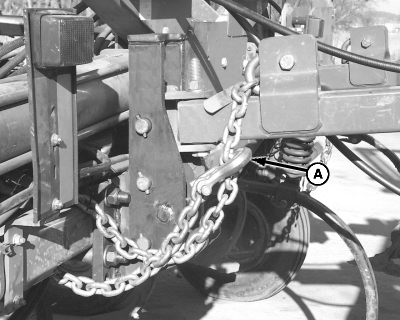

    A48471
    A48471-UN-03JAN02

    A - Safety Chain

    At both hitch connections, wrap safety chains (A) around rear bar and retain with hook latch.

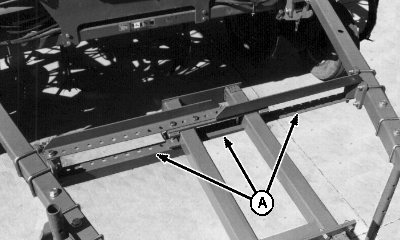

  15. A42152
    A42152-UN-22OCT97

    A - Hitch Cross-Support

    If not already done, assembly and adjustment of hitch cross-support (A) can now be finished and hardware tightened. Refer to Steps 6 and 7 for details.


  16. Tighten ALL hardware.

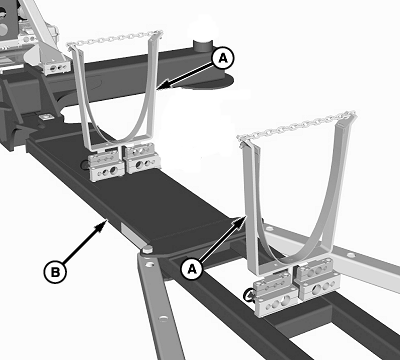

  17. A87747
    A87747-UN-23SEP15

    A87748
    A87748-UN-23SEP15

    A - Air Hose Cradle (2 used)

    B - Field Hitch

    C - Strap (2 used)

    D - Retaining Chain (2 used)

    E - Flanged Cap Screw and Lock Nut, M10 x 35 (4 used)

    Install cradles (A) on field hitch (B) using M6 x 40 roll pins.


  18. Install strap (C) and retaining chain (D) on cradles using hardware (E).

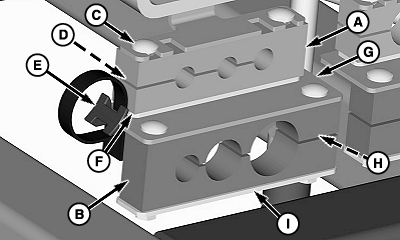

  19. A87749
    A87749-UN-23SEP15

    Right-hand Side Shown

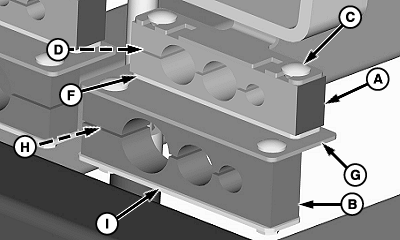

    A87750
    A87750-UN-23SEP15

    Left-hand Side Shown

    A - Block Clamp, 140 mm (5.5 in) x 25.4 mm (1 in) (2 used)

    B - Block Clamp, 160 mm (6.3 in) x 25.4 mm (1 in) (2 used)

    C - Carriage Bolt and Flange Nut, M8 x 65 (8 used)

    D - Bushing, 35 mm (1.4 in) (4 used)

    E - Clamp

    F - Plate, 140 mm (5.5 in) x 25.4 mm (1 in) (2 used)

    G - Plate, 164.6 mm (6.5 in) x 60 mm (2.4 in) (2 used)

    H - Bushing, 44.45 mm (1.8 in) (4 used)

    I - Plate, 164.6 mm (6.5 in) x 30 mm (1.2 in) (2 used)

    Loosely install block clamps (A and B) on cradles using hardware (C—J) as shown.

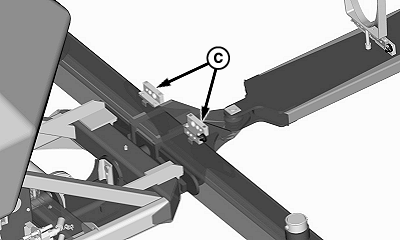

  20. A87751
    A87751-UN-23SEP15

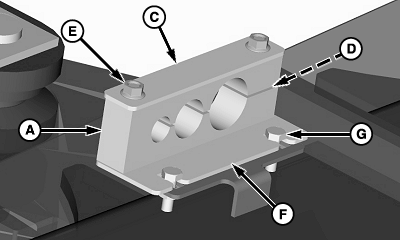

    A87752
    A87752-UN-23SEP15

    Left-hand Side Shown

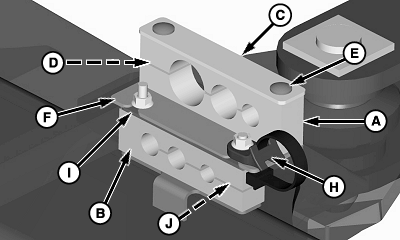

    A87753
    A87753-UN-23SEP15

    Right-hand Shown

    A - Block Clamp, 160 mm (6.3 in) x 25.4 mm (1 in) (2 used)

    B - Block Clamp, 140 mm (5.5 in) x 25.4 mm (1 in)

    C - Plate, 164.6 mm (6.5 in) x 30 mm (1.2 in) (2 used)

    D - Bushing, 44.45 mm (1.8 in) (4 used)

    E - Carriage Bolt and Flange Nut, M8 x 65 (6 used)

    F - Plate, 164.6 mm (6.5 in) x 60 mm (2.4 in) (2 used)

    G - Cap Screw and Flange Nut, M8 x 25 (2 used)

    H - Clamp

    I - Plate, 140 mm (5.5 in) x 25.4 mm (1 in)

    J - Bushing, 35 mm (1.4 in) (2 used)

    Loosely install block clamps (A and B) on cart frame in location (C) using hardware (D—J) as shown.

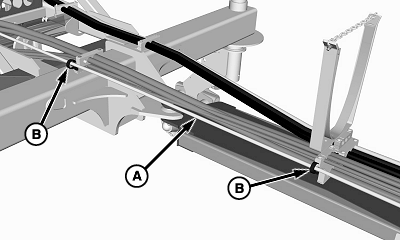

  21. A87754
    A87754-UN-23SEP15

    A - Hydraulic Brake Hose

    B - Tie Band (2 used)

    Route hydraulic hoses and electrical harnesses down the field hitch using previously installed block clamps.


  22. Secure hydraulic brake hose (if equipped) (A) to clamp using tie bands (B). Tighten previously installed block clamp hardware.

  23. Connect hydraulic hoses to couplers on rear of seeding tool.

  24. Connect electrical harnesses to connectors on rear of tool.

  25. Fertilizer primaries are green hoses. Seed primaries are black hoses.

    Fertilizer is typically on top shoot of a double shoot cart and connects to top couplers on tool.

    Seed is typically on bottom shoot of a double shoot cart and connects to bottom couplers on tool.

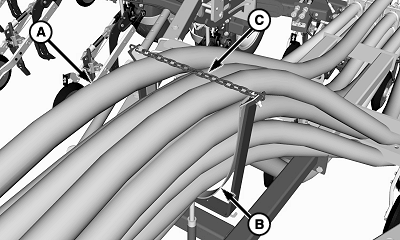

    A87756
    A87756-UN-23SEP15

    A - Primary Hoses

    B - Strap

    C - Retaining Chain

    When installed, lay primary hoses (A) between strap (B) and chain (C).

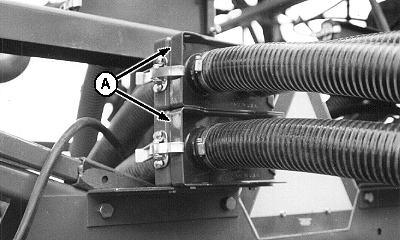

  26. A42162
    A42162-UN-27OCT97

    A - Air Hose Connectors

    Connect hose couplers to air hose connectors (A) on rear of seeding tool. Refer to Seeding Tool Predelivery Instructions (PDI) for air hose connections to rear bar.


  27. A42156
    A42156-UN-22OCT97

    A - Storage Stands

    B - L-Pins

    Remove pins and move storage stands (A) into transport/field position. Retain stands with L-pins (B) and quick-lock pins.
