Detach Machine from Tractor

1.
   A51934-UN-03MAR03

   3-Section 1895 Shown

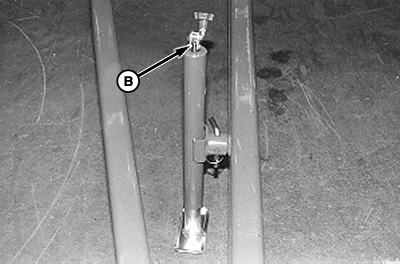

   A64578-UN-15MAY09

   A - Hydraulic Lock-Up Valves

   B - Hitch Jack

   Fold the wings.

---




2. Close hydraulic lock-up valves (A).

3. Remove weight from tractor drawbar using hitch jack (B).

4. If pressure is not relieved from the wing fold cylinders, wings gradually lower. Temperature increases, or sunlight can cause thermal expansion of hydraulic fluid. Always relieve pressure before parking or storing machine.

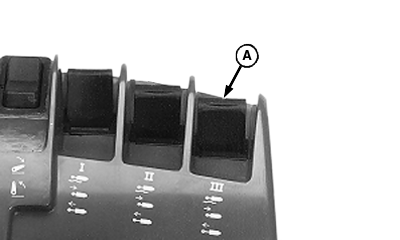

   A55205-UN-04NOV04

   Electro/Hydraulic SCV Controls

   A - Tractor Control

   Relieve pressure before disconnecting hydraulic hoses. Position tractor control (A) in “float” position.

---




5. Shut off tractor engine.

6.
   A85599-UN-11MAR15

   A - Case Drain Hose

   Remove hydraulic case drain hose (A) from the low-pressure drain coupler.

---




7. Serious personal injury can result if you attempt to disconnect hydraulic hoses under pressure.

   To prevent sudden fluid release and machine movements, place SCV controls in “float” position before disconnecting hoses.

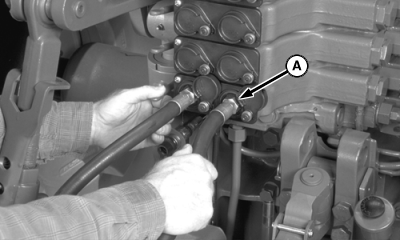

   RW55304-UN-18DEC01

   Electro/Hydraulic SCV Controls


   N45734-UN-17NOV93

   A - Hose

   Remove hydraulic hoses (A) and electrical connectors from tractor outlets and cover receptacles.

   Air Drill: Place hoses and cable in storage position on the hitch bracket.

---




8.

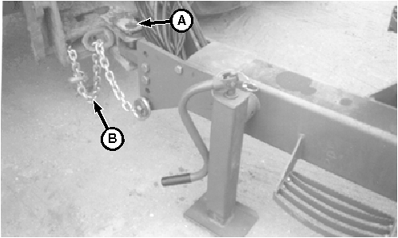

   A41633-UN-28APR97

   1910 Tow-Between Air Cart Shown

   A - Pin

   B - Chain

   Remove safety chain (B).

---




9. Remove hitch pin (A).

10. Start tractor engine and drive away from machine.
