Detach Seeding Tool from Tow-Between Air Cart

1. To help prevent personal injury caused by unexpected movement of the machine:

   • Park machine on a level surface.
   • Block machine wheels.
   • Lower machine to the ground.
   • Verify that no upward force exists at the hitch connection before removing hitch pin.




   A42105-UN-27SEP97

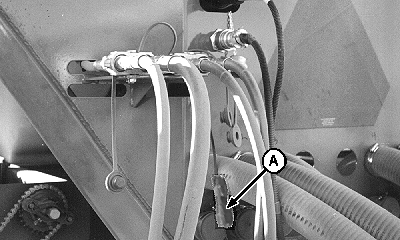

   A - Electrical Harness

   Open clips to disconnect air hose connectors. Install coupler plugs.

---




2. Disconnect electrical harness (A).

3. Serious personal injury can result if an attempt is made to disconnect hydraulic hoses under pressure.

   If pressure is not relieved from the wing fold cylinders, wings gradually lower. Temperature increases or sunlight can cause thermal expansion of hydraulic fluid. Always relieve pressure before parking or storing machine.


   A55956-UN-13MAR05

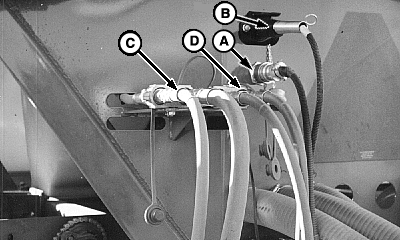

   A - CAN bus Interface Harness (if equipped)

   B - Warning Light Cable

   C - Lift Hoses

   D - Wing-Fold Hoses

   Shut off tractor engine. (Refer to tractor Operators Manual for SCV operation to relieve pressure.)

---




4. Disconnect Blockage Monitor System—CAN bus interface harness (A) if equipped.

5. Disconnect warning light cable (B) from plug.

6. Disconnect lift and wing-fold hoses from hydraulic couplers (C and D).

7. Disconnect the hydraulic downforce hoses.

8.
   N45734-UN-17NOV93

   Place hoses and warning light plug into storage position on hitch.

---




9.
   N40112-UN-17DEC01

   A - Pin

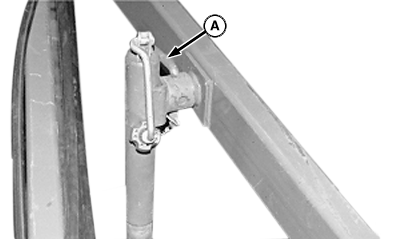

   Attach hitch jack in storage position with pin and quick-lock pin (A). Remove weight from the tongue by turning the handle.

---




10.
    A42079-UN-23SEP97

    A - Pin

    B - Chain

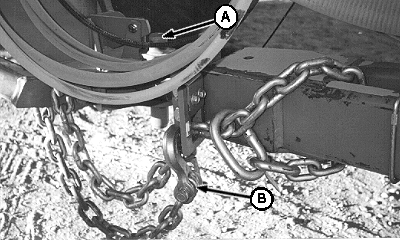

    Remove hitch pin (A) and safety chain (B).

---




11. Drive the tractor and air cart away from the drill.
