Frame Support for 1910 Tow-Behind Air Cart—12.2 m (40 ft) and 13 m (42 ft 6 in) 1890 Only

Use additional frame support on the seeding tool when connecting to a 550 bu 1910 cart.

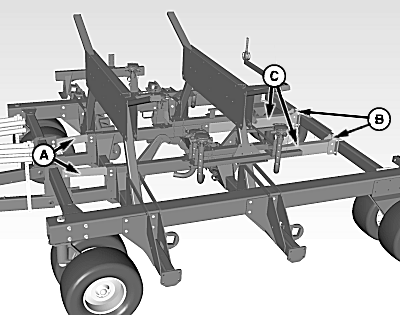

A75366
A75366-UN-06JUN12

A - Upper Draft Link (2 used)

B - Bracket (2 used)

C - Support Bracket (2 used)

If used with a 550 bu 1910 cart, verify that front upper links (A), brackets (B), and support brackets (C) are installed.
