Replace Liquid or Gas Fertilizer Tube

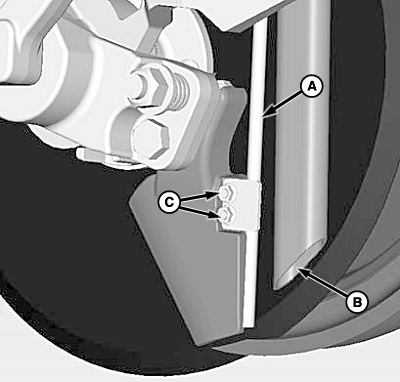

  1. A75326
    A75326-UN-31MAY12

    A - Liquid or Gas Fertilizer Tube

    B - Dry Fertilizer Tube

    C - Cap Screw and Nut, M6 x 16 mm (2 used each tube)

    Remove and retain hardware (C). Remove and discard tube (A).


  2. Install new tube, using existing hardware. Use existing holes with bracket on dry tube (B).

LD45720,000066E-19-20120531
