Connect Optional Monitor Wiring (If Equipped)

A42598
A42598-UN-06MAY98

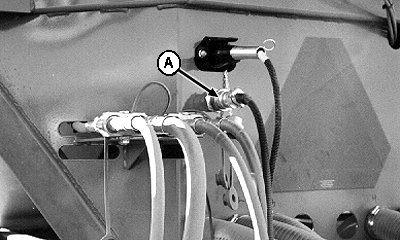

1910 Tow Between Cart

A - DEUTSCH Connector

Tow-Between Cart:If seeding tool is equipped with a blockage monitoring system, the interface connection must be made to the carts standard monitor and control system at DEUTSCH screw-on connector (A).

Tow-Behind Cart: When tillage equipment is equipped with a blockage monitoring system, interface connection is made at the rear of the seeding tool. This interface connection uses a DEUTSCH® screw-on connector, similar in appearance to the one shown in tow-between application.

DEUTSCH is a trademark of TE Connectivity Ltd.

OUO6023,000014C-19-20160420
