Connect Height Sensor (If Equipped)

As openers lower, the height sensor signals the controller to engage main seed cart drive clutch.

For 19.1 cm (7.5 in.) and 38.2 cm (15 in). dual row spacing machines equipped with dual height sensor option, connect cable for switch on desired rank of openers (front or rear). Cables and switches are marked with color-coded tie bands for ease of identification.

A54080
A54080-UN-15MAR04

Height Sensor

A42104
A42104-UN-27SEP97

Tow-Between Shown

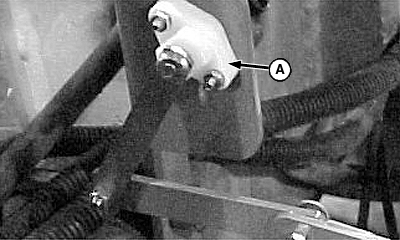

A - Height Sensor

B - “Lift” Connector

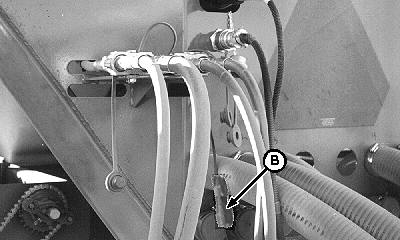

Attach cable from height sensor (A) to “LIFT” connector (B) at the rear of the seed cart.
