Position Drawbar

N42074N-UN-25SEP90

	Drawbar Position		Tow-Behind Carts		Tow-Between Carts
	Road Transport	Height	Drawbar Position	Drawbar Length	Drawbar Position	Drawbar Length

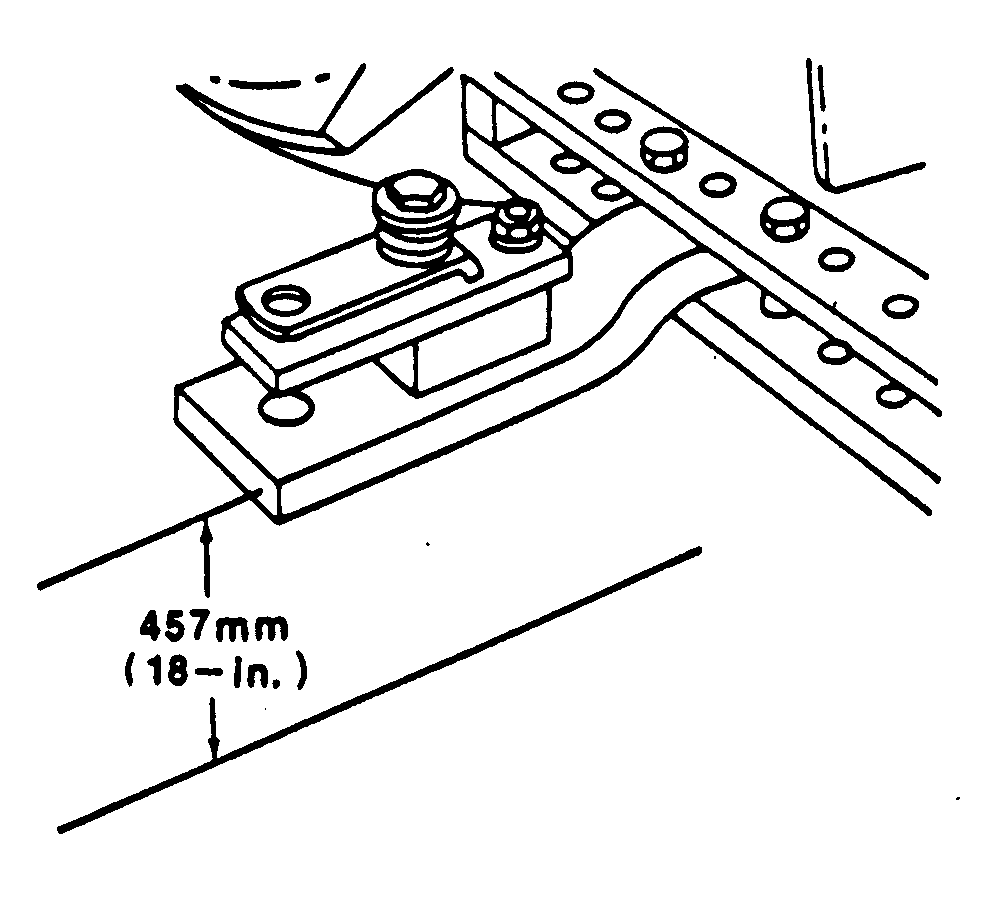

Four Wheel Drive Wheel Tractors and Track Tractors	Fixed Center	457 mm (18 in) from ground to top of drawbar.	One hole clearance on each side.	Long	Fixed Center	Short
All Other Tractors	Fixed Center	457 mm (18 in) from ground to top of drawbar.	Fixed Center	Long	Fixed Center	Short

1. Avoid personal injury or death due to loss of steering. Always pin drawbar in center position on all tractors when transporting machine.

   Position drawbar according to information in table.

2. Verify clevis assembly (if equipped) is installed on top of drawbar.

3. Tighten clevis assembly bolts according to specifications. (See your tractor Operator's Manual for specifications.)
