Replace Dry Fertilizer Tube

1.
   A64577-UN-13MAY09

   Parts Removed for Clarity


   A64484-UN-13MAY09

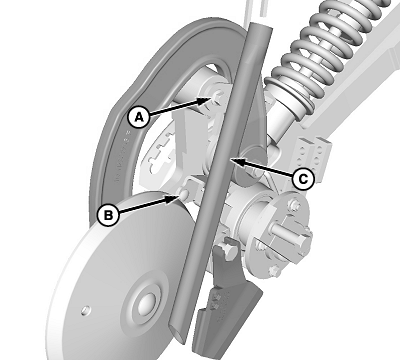

   A - Cap Screw and Nut

   B - Round Head Cap Screw and Nut

   C - Dry Fertilizer Tube

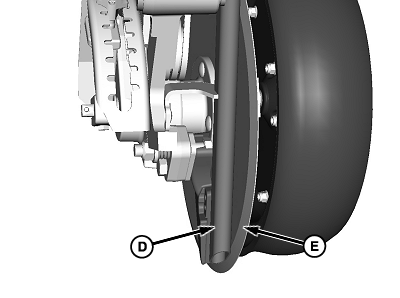

   D - End of Tube

   E - Disk Blade

   Remove hardware (A), (B), and tube (C).

---




2. Install new tube using existing hardware. Place shims under lower tube bracket to achieve a 3 mm (5/16 in.) gap between tube (D) and blade (E).
