Attach Air Drill or Tow Between Cart to Tractor

See Transport Safely, Observe Maximum Transport Speed, Use a Safety Chain, and Tow Loads Safely information in safety section before transporting the machine.

If tractor has Category (Cat) IV drawbar, it must be used with a Category IV clevis on implement. If tractor has Category V drawbar, it must be used with a Category V clevis on implement.

1.

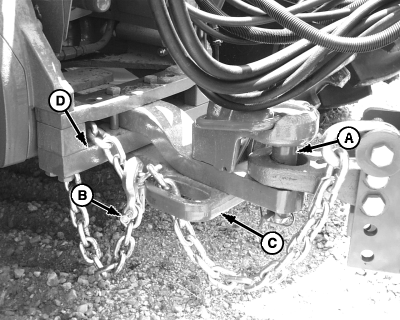

   A52383-UN-02JUL03

   8000 Series Tractor Chain Routing

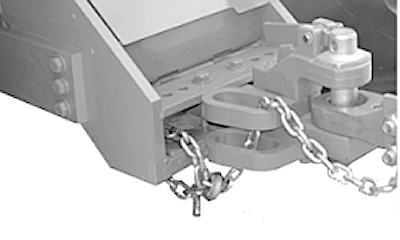

   A60201-UN-07JUN07

   9000 Series Tractor Chain Routing

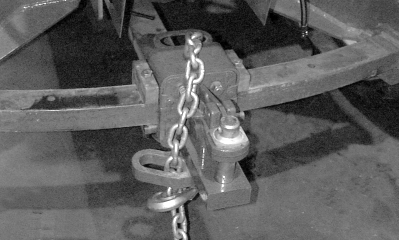

   A61819-UN-08JAN08

   9000T Series Tractor Chain Routing

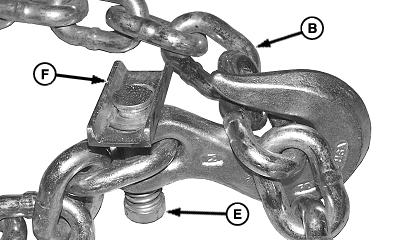

   A52496-UN-08JAN08

   Safety Lock Open

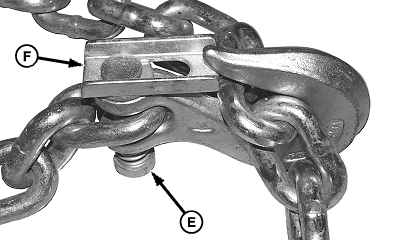

   A52497-UN-08JAN08

   Safety Lock Closed

   A - Drawbar Pin

   B - Safety Chain

   C - Loop

   D - Support

   E - Spring Latch

   F - Safety Lock

   Back tractor to hitch.

---




2. Install drawbar pin (A) and secure.

3. Install safety chain (B) through loop (C) and drawbar support (D).

4. Press spring latch (E) and rotate safety lock (F) open.

5. Attach hook to chain between drawbar support (D) and loop (C).

6. Press spring latch (E) and rotate safety lock (F) into closed position.

7. Verify that hitch jack handle is located in the upper position to prevent damage to jack.


   N85345AA1-UN-17DEC01

   A - Hitch Jack

   Raise hitch jack (A) and pin in transport position.

---




8.

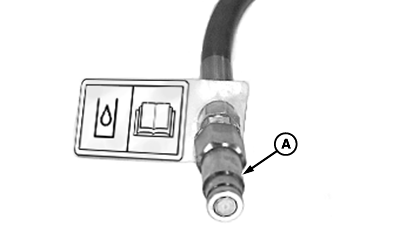

   A85599-UN-11MAR15

   Flush Face Case Drain Tip

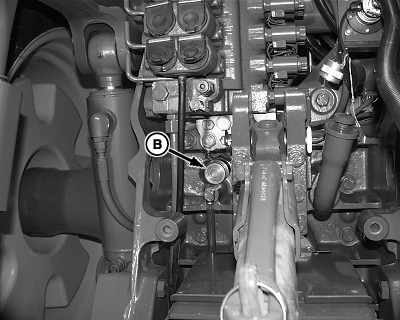

   A53855-UN-19FEB04

   8000 Series Tractor Shown

   A - Case Drain Hose

   B - Low-Pressure Drain Coupler

   Hydraulic motor case drain hose must be attached to low-pressure drain connection before inlet and return hoses are connected. Case drain MUST have LESS THAN 172 kPa (1.72 bar) (25 psi) or hydraulic motor damage occurs.

   Install a Low-Pressure Drain Line Kit when towing tractor is not equipped.

   DO NOT USE other ports at the rear of the tractor which are similar in appearance and size to low-pressure drain port. Due to high back-pressure (over 172 kPa [1.72 bar] [25 psi]), drain connection to these ports results in hydraulic motor damage.

   Attach case drain hose (A) to tractor low-pressure drain coupler (B).

---




9. Check tractor hydraulic oil level after filling cylinders with oil for the first time.

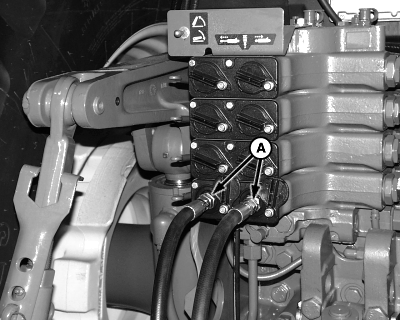

   A47128-UN-05MAR01

   8000 Series Tractor Shown

   A - Drawbar Hitch Hoses

   Attach drawbar hitch hoses (A) to tractor. (See Hydraulic Connections Recommendations in this section for recommended hydraulic connections).

---
