Tow-Behind Field Hitch

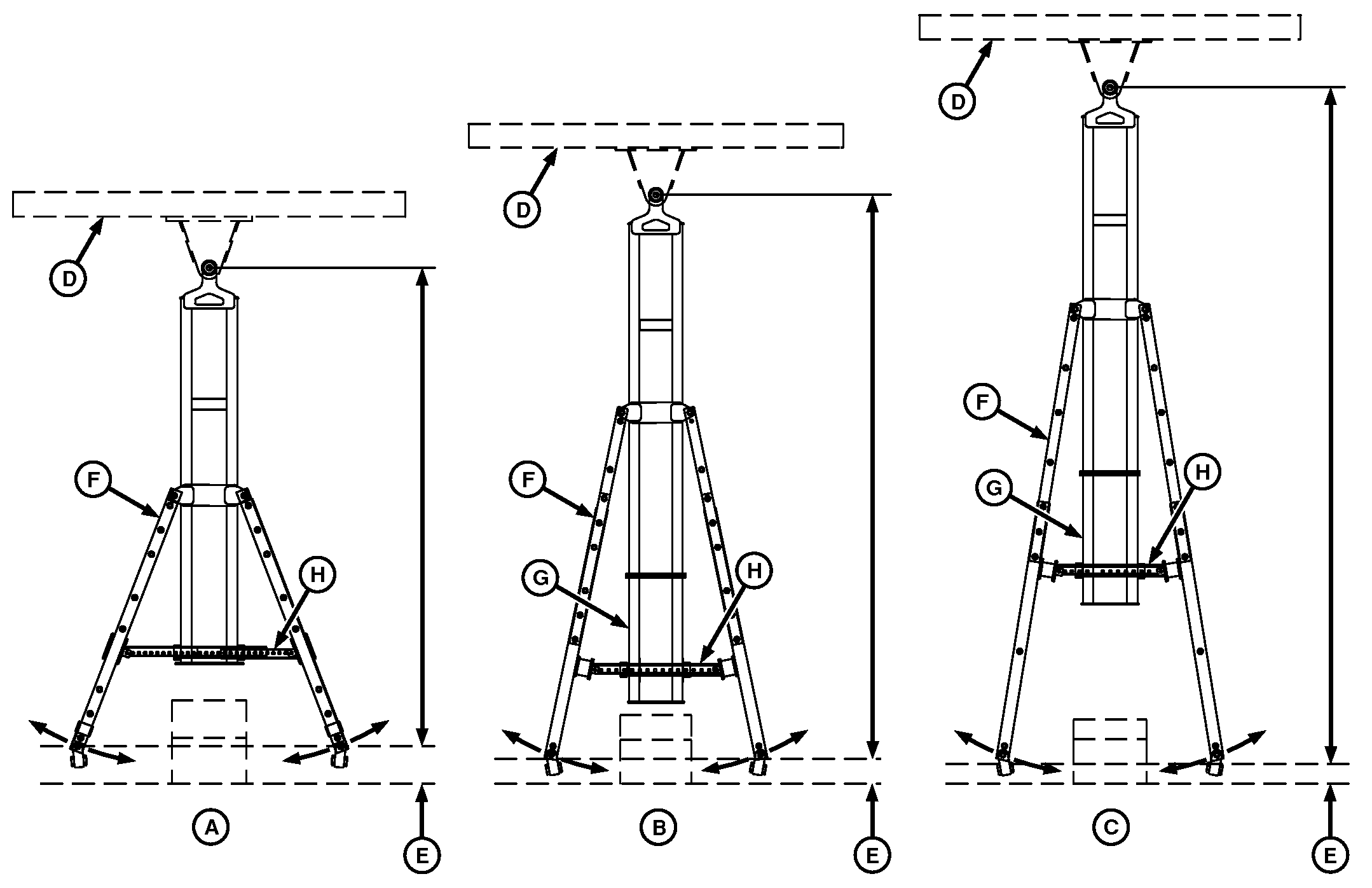

A57784-UN-18APR06

A - Short Length

B - Mid-Length

C - Long-Length

D - Air Cart

E - Minimum/Maximum Hitch Length

F - Hitch Tube

G - Hitch Frame Extension

H - Cross-Support

Hitch tube length is adjustable to provide clearance for rear bar attachments, such as press wheels and harrow.

Hitch frame extension is required in mid length positions.

Hitch Tube Settings—Tow-Behind
Tillage Model	Hitch Tube Setting	Hitch Frame Extension	Minimum Hitch Length mm (in.)	Maximum Hitch Length mm (in.)
1890/1895	Short Length	No	3402 (134)	3670 (145)

Cross-support adjustment is required for all installations, regardless of tube length settings.

Cross-support must be relocated to frame extension when mid-length or long-length settings are used.

Storage stands may need to be relocated closer to tube ends to support hitch when disconnected from tool.

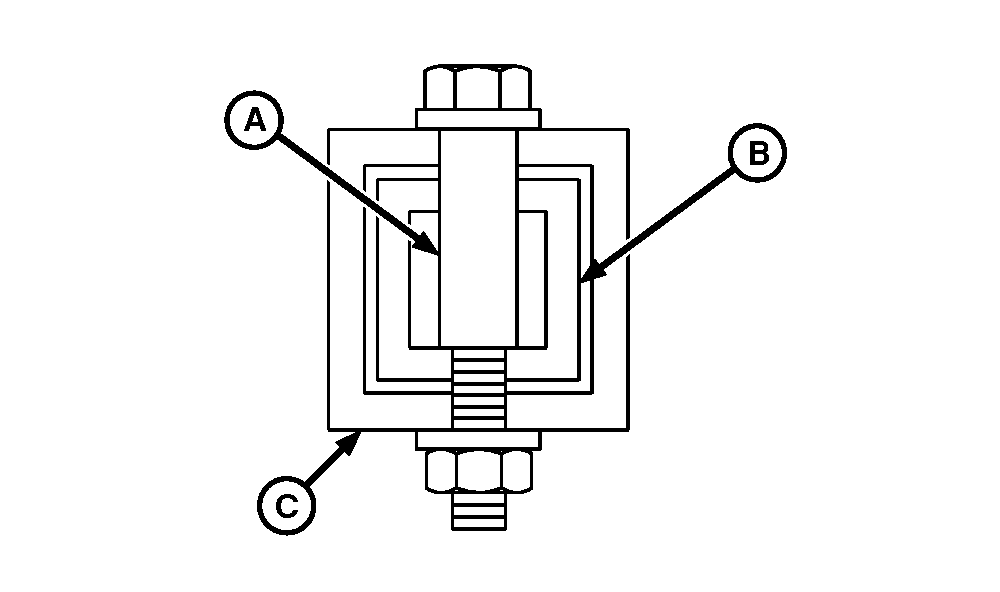

A57785-UN-18APR06

A - Retainer Spacer

B - Inner Tube

C - Outer tube
