Detach Tow-Behind Cart From Seeding Tool

A75679
A75679-UN-31JUL12

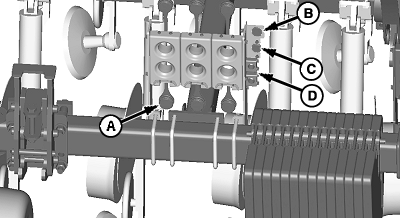

A - Plugs

B - Connector

C - Connector

D - Couplers

To help prevent personal injury caused by unexpected movement of the machine:
  • Park machine on level surface.
  • Block tires.

  1. Open clips to disconnect air hose connectors. Install plugs (A). If plugs are not available, plug tubes with rags to keep out debris and rodents.

  2. Disconnect cart clutch and light power harness and controller power and communications cable from connectors (B and C). Install plugs and caps.

  3. Disconnect any other cables or harnesses attached at the rear of the seeding tool.

  4. Serious personal injury can result if you attempt to disconnect hydraulic hoses under pressure.

    Place SCV controls in “Float” position to relieve pressure before disconnecting hoses.

    Disconnect hoses from couplers (D). Install plugs and caps.

  5. A42156
    A42156-UN-22OCT97

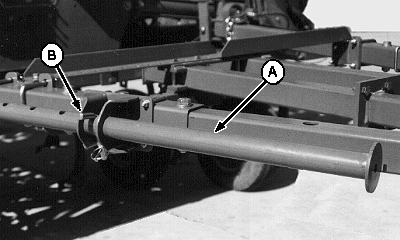

    Transport/Field Position

    A42143
    A42143-UN-22OCT97

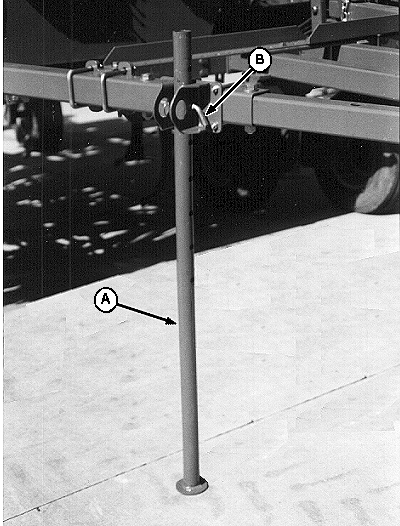

    Storage Position

    A - Storage Stands

    B - Pins

    Remove pins (B) and move storage stands (A) from transport/field position to storage position. Place tube ends in contact with ground and retain with L-pins and quick-lock pins.


  6. A54005
    A54005-UN-05MAR04

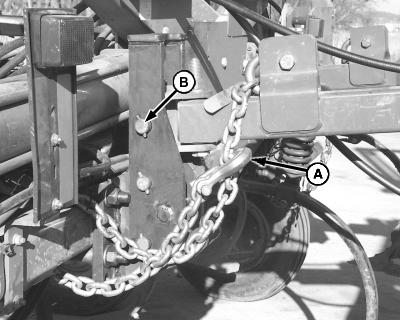

    A - Chains

    B - Pins

    At both hitch connections, open hook latches and remove safety chains (A) from rear bar of tool.


  7. At both hitch connections, remove hitch tube-to-arm pins (B).

  8. Drive tractor and seeding tool away from air cart.
