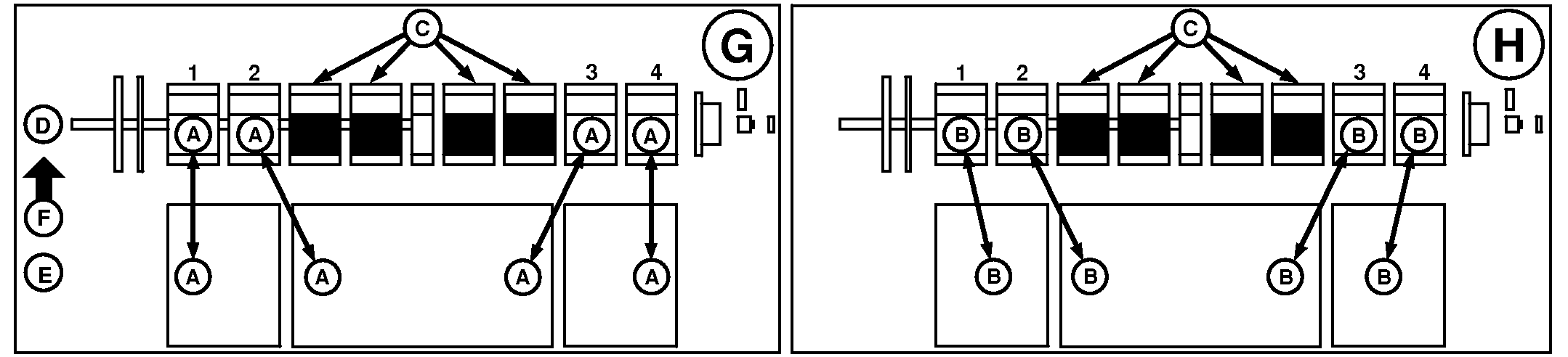

9.1 m (30 ft) 1890 Meter Cartridge/Seeding Tool Diagram

A67416-UN-20MAY10

A - 9 Port Header/3 Tuning Rings

B - 12 Port Header/0 Tuning Rings

C - Install Doors

D - Cart Meter Cartridge

E - Seeding Tool

F - Direction of Travel

G - 25 cm (10 in) Row Spacing

H - 19 cm (7.5 in) Row Spacing
