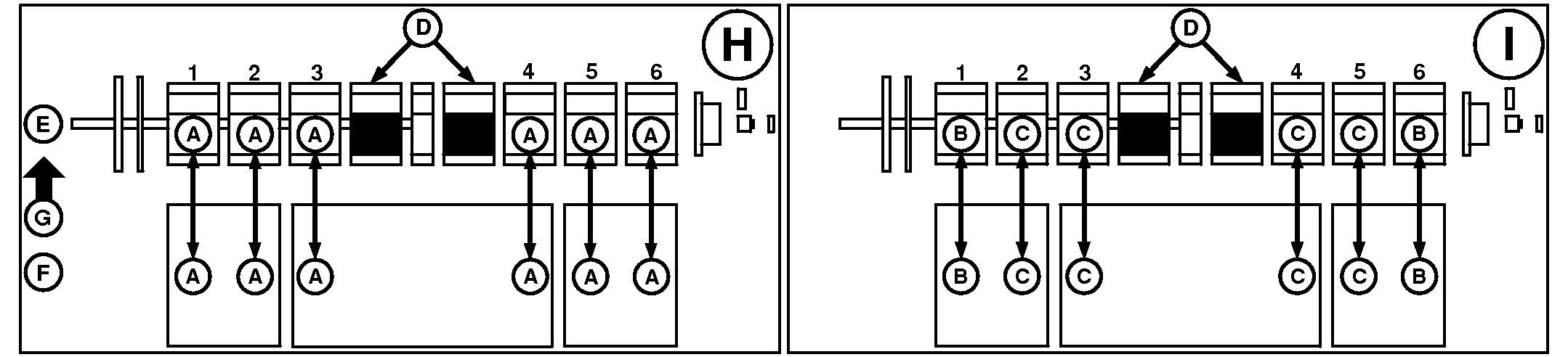

12.2 m (40 ft) 1890 Meter Cartridge/Seeding Tool Diagram

A67418-UN-20MAY10

A - 8 Port Header/4 Tuning Rings

B - 10 Port Header/2 Tuning Rings

C - 11 Port Header/1 Tuning Rings

D - Install Doors

E - Cart Meter Cartridge

F - Seeding Tool

G - Direction of Travel

H - 25 cm (10 in) Row Spacing

I - 19 cm (7.5 in) Row Spacing
