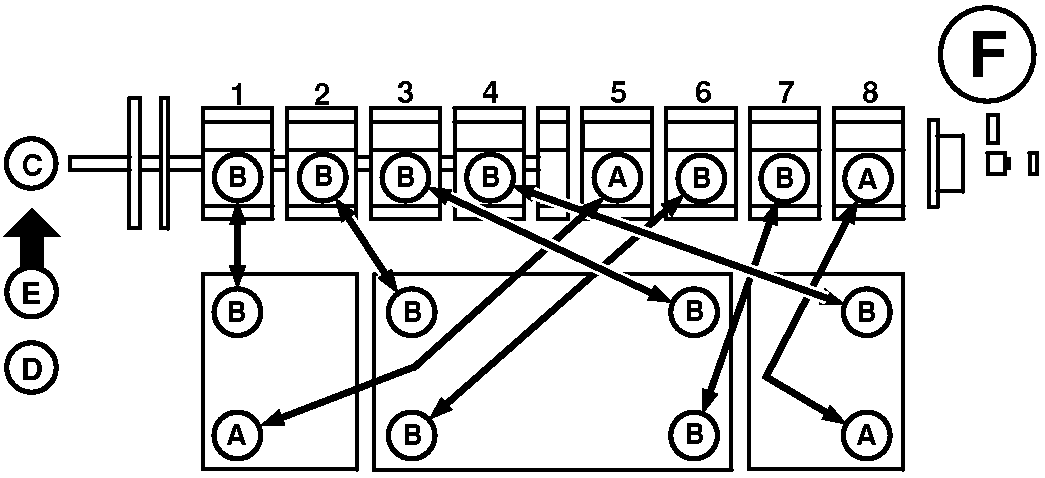

11 m (36 ft) 1890 Meter Cartridge/Seeding Tool Diagram

A67423-UN-20SEP12

A - 7 Port Header/5 Tuning Rings

B - 8 Port Header/4 Tuning Rings

C - Cart Meter Cartridge

D - Seeding Tool

E - Direction of Travel

F - 19 cm (7.5 in) / 38.2 cm (15 in) Dual Row Spacing
