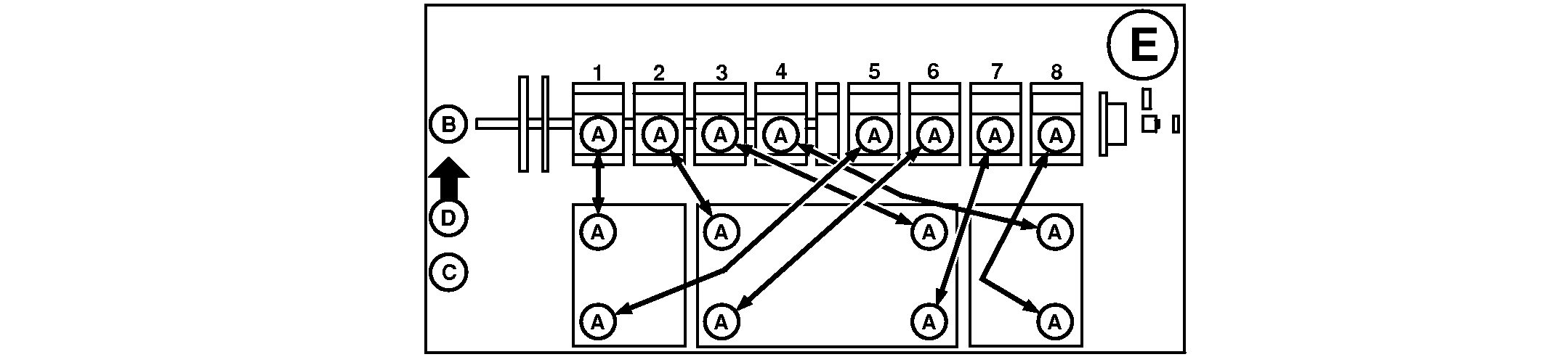

12.2 m (40 ft) 1890 Meter Cartridge/Seeding Tool Diagram

A67424-UN-20MAY10

A - 8 Port Header/4 Tuning Rings

B - Cart Meter Cartridge

C - Seeding Tool

D - Direction of Travel

E - 19 cm (7.5 in) / 38.2 cm (15 in) Dual Row Spacing
