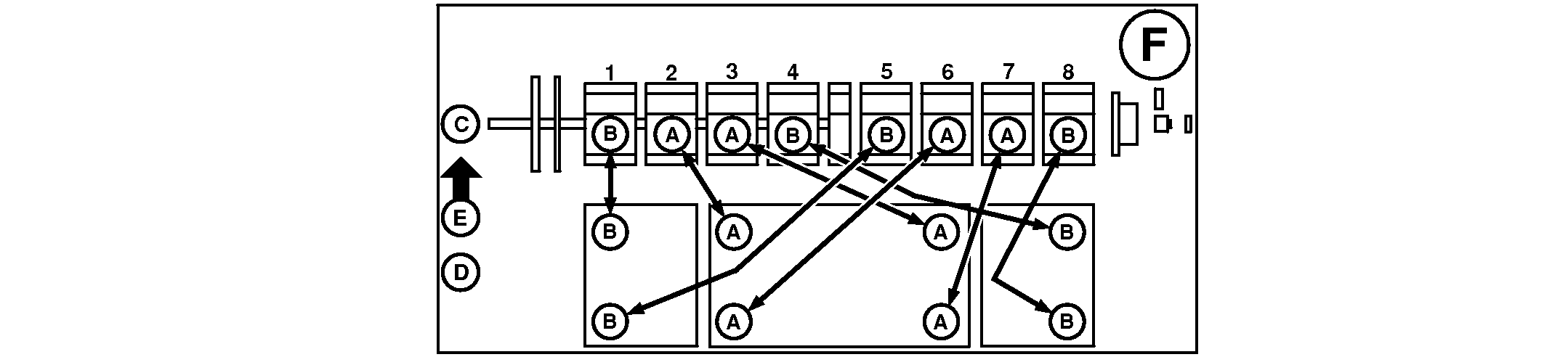

13 m (42 ft 6 in) 1890 Meter Cartridge/Seeding Tool Diagram

A67425-UN-20MAY10

A - 8 Port Header/4 Tuning Rings

B - 9 Port Header/3 Tuning Rings

C - Cart Meter Cartridge

D - Seeding Tool

E - Direction of Travel

F - 19 cm (7.5 in) / 38.2 cm (15 in) Dual Row Spacing
