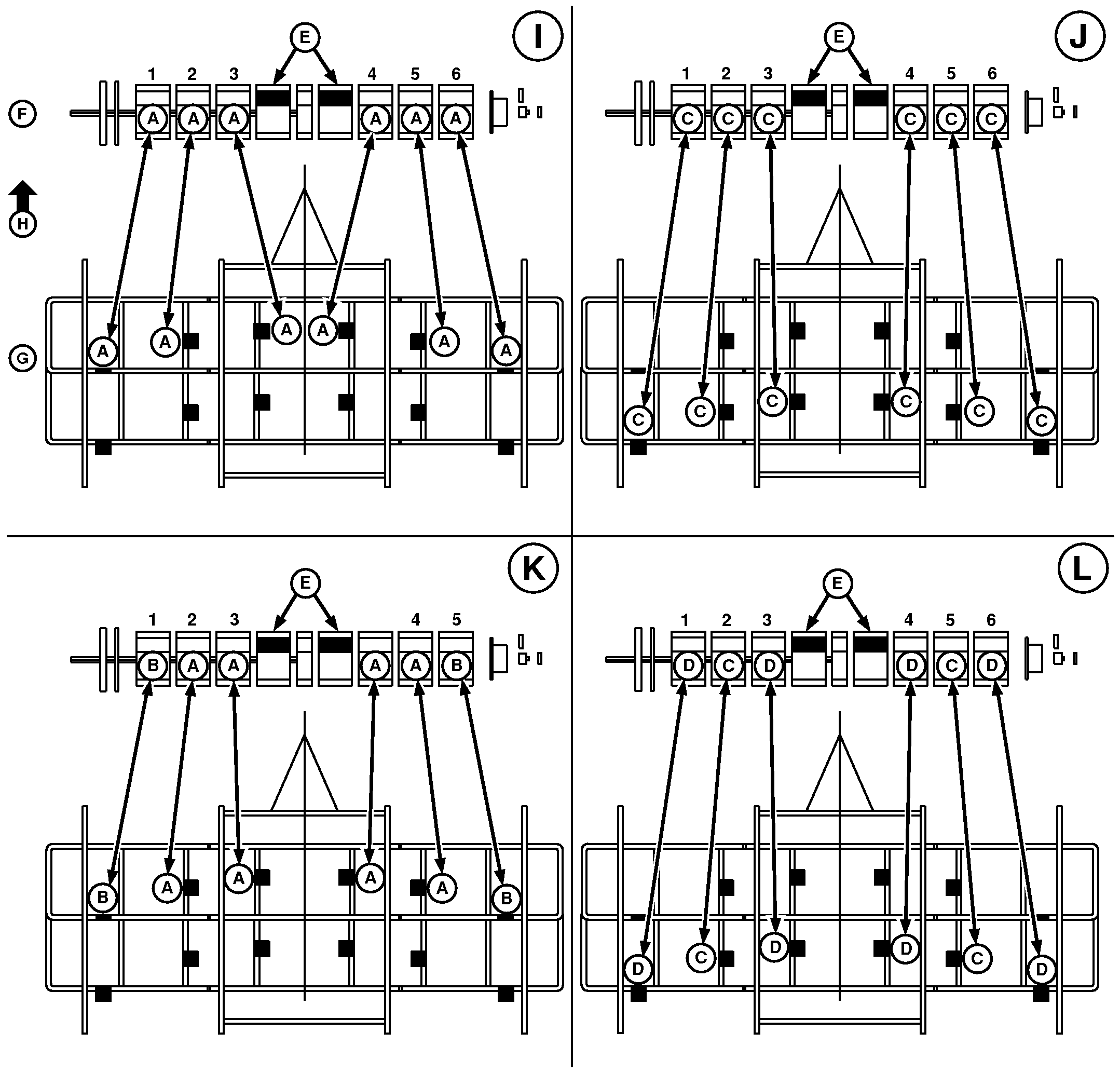

1895 Meter Cartridge/Seeding Tool Diagram

A67427-UN-20MAY10

A - 4 Port Header/4 Tuning Rings

B - 5 Port Header/2 Tuning Rings

C - 8 Port Header/4 Tuning Rings

D - 9 Port Header/3 Tuning Rings

E - Cart Meter Cartridge

F - Seeding Tool

G - Direction of Travel

I - 12.2 m (40 ft) with 25.4 cm (10 in) spacing (Fertilizer Towers Double Shoot Only)

J - 12.2 m (40 ft) with 25.4 cm (10 in) spacing (Seed Towers Single or Double Shoot)

K - 13.1 m (43 ft) with 25.4 cm (10 in) spacing (Fertilizer Towers Double Shoot Only)

L - 13.1 m (43 ft) with 25.4 cm (10 in) spacing (Seed Towers Single or Double Shoot)
