Install Frame Quik-Tatch™ Weights—3-Section Machines

Each Quik-Tatch™ weight weighs 45.4 kg (100 lb). Use proper lifting equipment to avoid personal injury.

Quik-Tatch™ weights are attached to rear of the center frame and wing ends to increase downforce. The center frame holds a maximum of 14 weights. Each wing holds a maximum of six weights.

1.
   A48953-UN-25MAR02


   A51933-UN-03MAR03

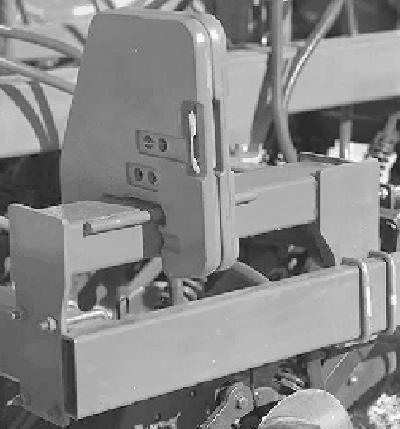

   Wing Frame—1895 Shown

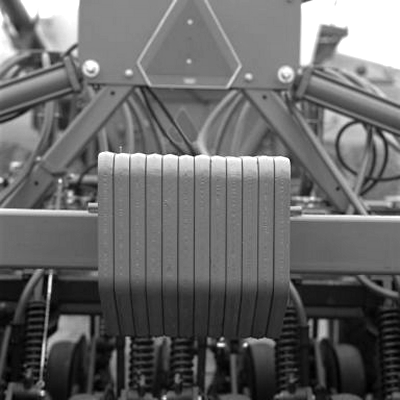

   Place two weights on the center frame, one on each side of welded pin.

---




2. Install an equal number of weights on both sides of the two weights and attach with the following hardware.

   Center Section Hardware
   Description (Part No.)	Qty. Required
   Retainer (AR68801)	2
   (5/8 x 17-1/2 in) Grade 5 Cap Screw (R59761)	2
   Washer (24M7241)	2

   Wing Section Hardware
   Description (Part No.)	Qty. Required
   Lock Nut (K40015)	4
   (5/8 x 8-1/2 in) Grade 8 Cap Screw (08H4248)	4
   Washer (24M7241)	8

   See your John Deere dealer or qualified service provider to order Quik-Tatch™ weights and attaching hardware.
