Lubricate Fertilizer Opener

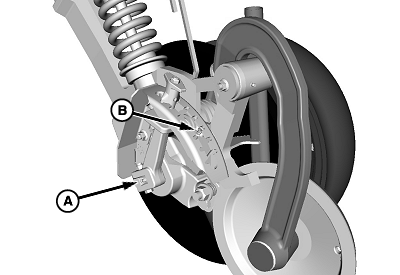

A64483
A64483-UN-13MAY09

A - Depth Gauge Arm

B - Press Wheel Pivot

At setup and once a year, apply ten pumps of grease to each opener depth gauge arm (A) and press wheel pivot (B). Cycle depth gauge arm fully in each direction.

OUO6435,0001D0E-19-20160222
