Replace SFP Boot

Procedure shown with press wheel removed for clarity.

1.
   A64575-UN-13MAY09


   A64576-UN-13MAY09


   A64479-UN-13MAY09

   A - Nut, Washer, and Spring

   B - Cap Screw

   C - SFP Boot

   D - Cap Screw

   E - Dimension, 21 mm (13/16 in.)

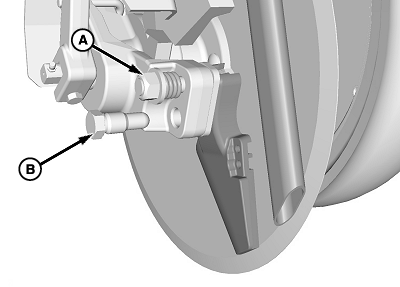

   Loosen hardware (A).

---




2. Remove cap screw (B).

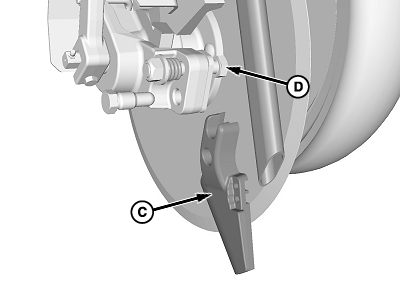

3. Pull down on SFP boot (C) to disengage from head of cap screw (D).

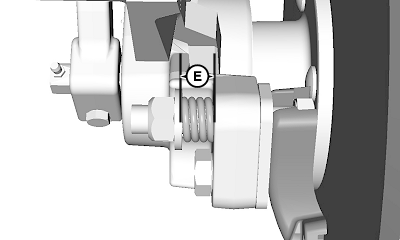

4. Install new boot in reverse order. Tighten nut (A) to achieve dimension (E).
