Attach Safety Chains

A60201
A60201-UN-07JUN07

9000 Series Tractor Chain Routing Shown

A60652
A60652-UN-24AUG07

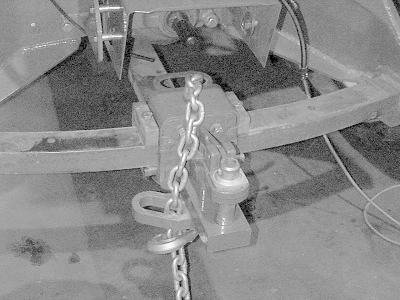

9000T Series Tractor Chain Routing Shown

A63900
A63900-UN-26NOV08

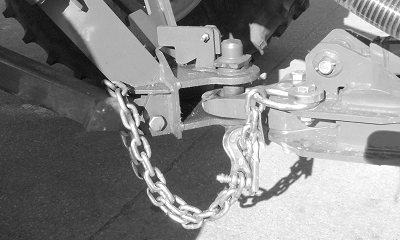

Air Tool to Seed Cart

Safety chains help control drawn equipment in case accidental separation from drawbar occurs during transport. A runaway machine could cause severe injury or death to someone. Provide only enough slack in chain to permit turning.

Chain attachment location can vary with different tractors. See tractor operator’s guide for specific information.

Inspect safety chain rating tag at each hitch. Relocate chains so highest strength chain is at implement-to-tractor hitch. Verify that chain capacities are equal to or greater than combined weight of following train. Larger chains can be purchased at your John Deere™ dealer.

John Deere is a trademark of Deere & Company

OUO6435,000232F-19-20160219
