Marker Adjustment

The marker disk creates a furrow in the soil. This adjustment will change the size of the furrow.

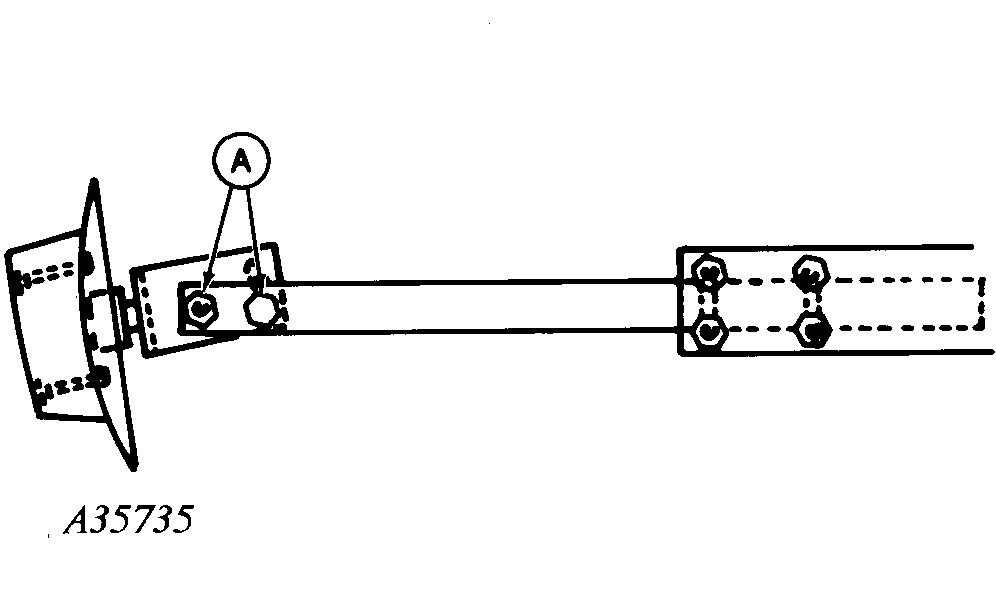

Loosen cap screws and nuts (A), adjust disk angle and tighten cap screws and nuts to 240 N·m (175 lb-ft) for 406 mm (16 in.) notch disk and 95 N·m (70 lb-ft) for the 330 mm (13 in.) disk.

1760OM,WF,OI,AA -19-25APR97-1/1
