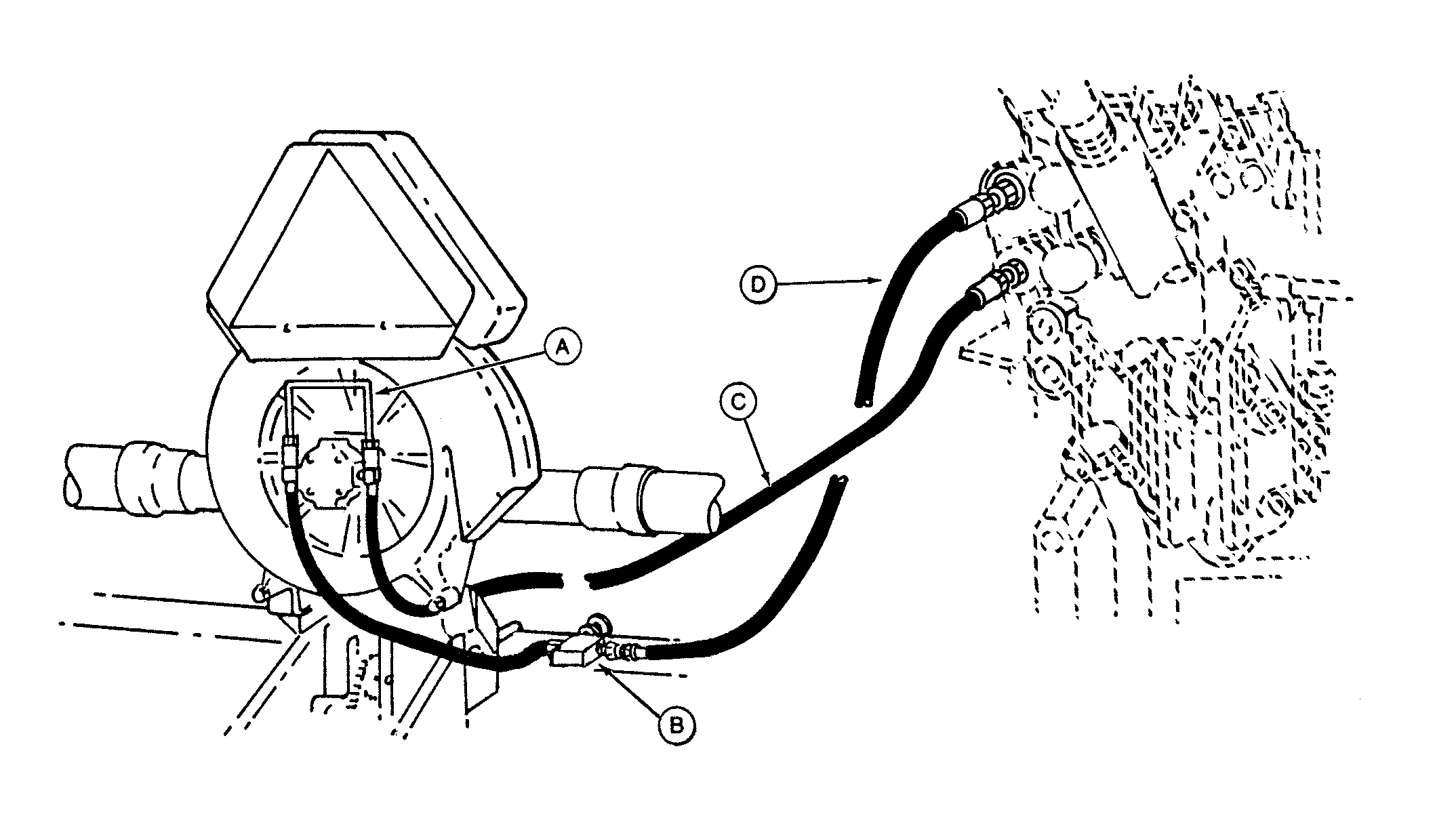

A-Adapter

B-Control Valve

C-Return Hose

D-Pressure Hose

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

IMPORTANT: Damage to blower motor may occur if hoses are assembled incorrectly. Check hydraulic connections before operating vacuum motor.

Attach vacuum motor adapter (A). Position flow control valve (B) on frame.

Insert hose (C) into lower left-hand SCV. Insert hose (D) into top of left SCV.

To operate the system, fully open flow control valve (B). Set SCV control knob to motor position (continuous detent). SCV flow control knob (rabbit-turtle knob) will be used to control vacuum level.

SCV lever should be in retract for running and "float" for off. The motor has an over-running check valve to protect seals if accidentally put in neutral.

56570OMA,30E -19-08MAY98-1/1
