Marker Float Range
|
|

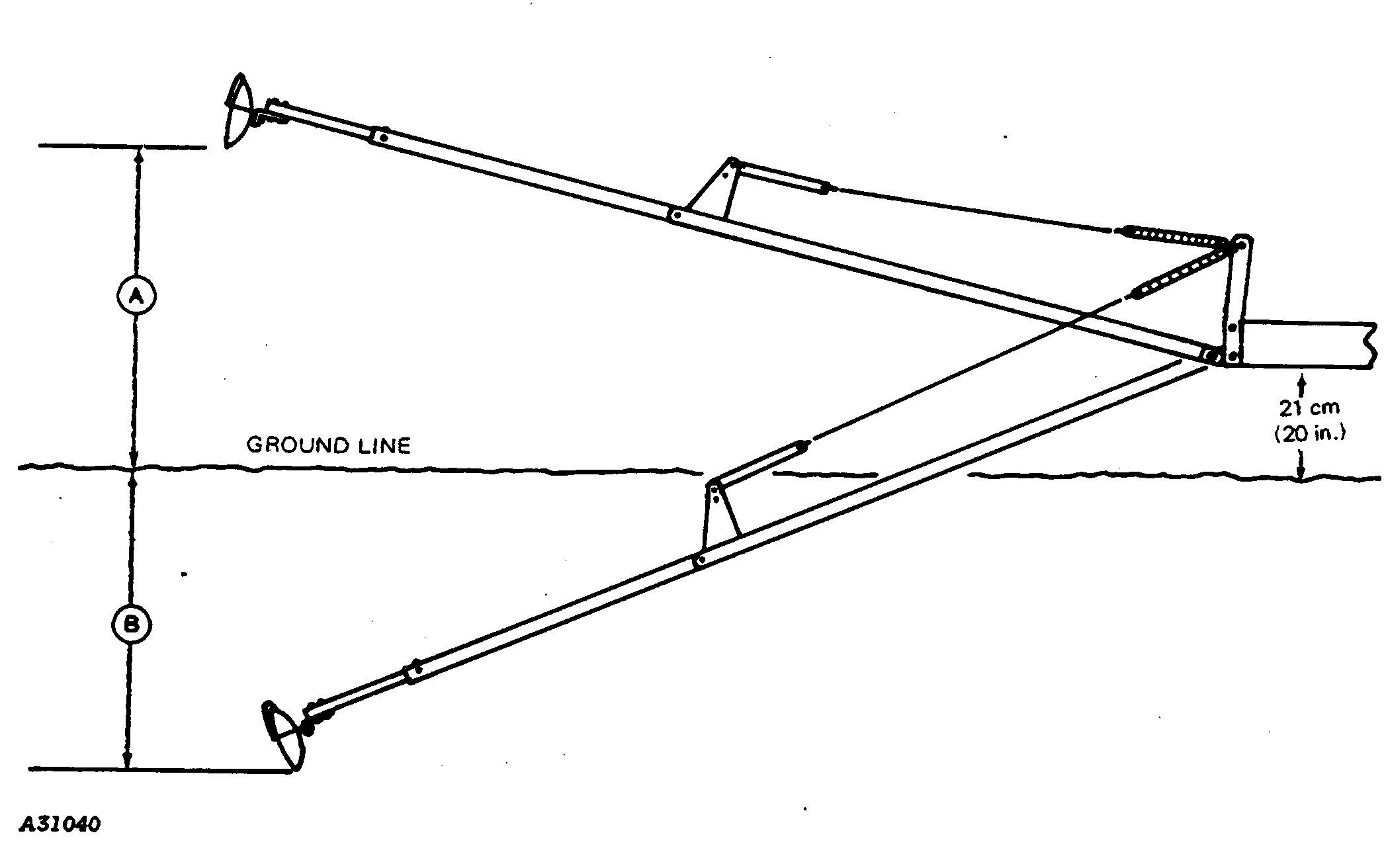

The marker has an approximate float range (see chart below) which should not be exceeded (e.g., when planting near drainage ditches or hillsides). Exceeding float range (A) can result in damage to the marker arm. |
If this range must be exceeded, raise the marker (planters with automatic markers) by raising the planter or (planters with independent markers) by operating the marker remote cylinder operating lever. |
| Planter | Row Spacing | Dimension "A" | Dimension "B" |
|---|---|---|---|
| 6-Row Wide | 91 cm (36 in.) | 732 mm (29 in.) | 460 mm (18 in.) |
| 97 cm (38 in.) | 782 mm (32 in.) | 550 mm (22 in.) | |
| 8-Row Narrow | 76 cm (30 in.) | 832 mm (33 in.) | 641 mm (25 in.) |
7200OM6,8OI,F -19-10JUN92-1/1 |
