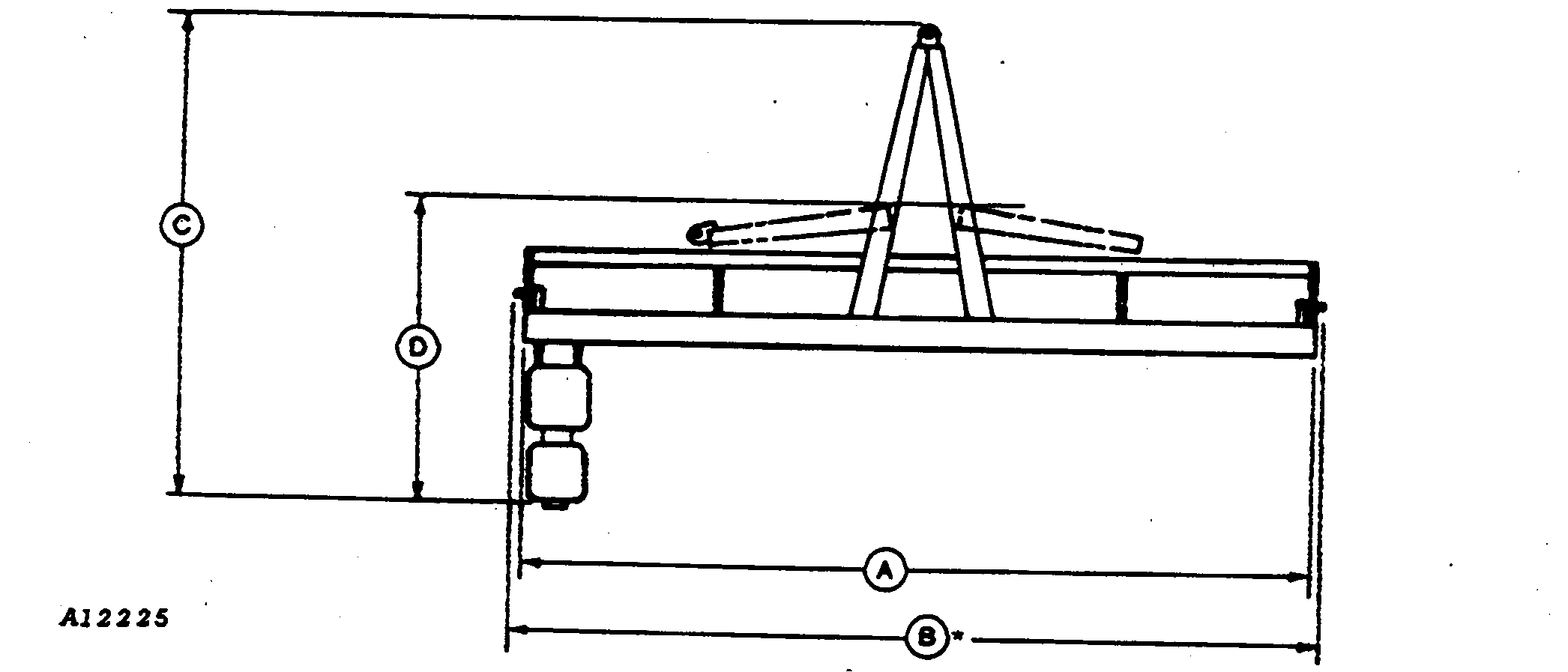

Planter Dimensions (6-Row Wide and 8-Row Narrow)
|
| A | Ba | C | D |
|---|---|---|---|
| TUBE LENGTH | FRAME WIDTH | HITCH EXTENDED | HITCH FOLDED |
| 5805 mm (228-1/2 in.) | 5875 mm (231-3/8 in.) | 4625 mm (182 in.) | 2420 mm (95-1/4 in.) |
| aWith markers in transport: 6320 mm (248-3/4 in.) | |||
|
|
when moving or operating this machine near electric lines to avoid contact. |
CAUTION:
Serious injury or death can result from contact with electric lines. Use care
7200OM6,8SP,B -19-25APR97-1/1 |
