Replacing Auger Sections

Disconnect couplers from augers by removing cotter pins and drilled pins (A).

7200OM,4,6WM,AR -19-29MAY92-1/5

CAUTION: Do not use torch to free frozen augers. Certain types of fertilizers may explode when heated.

Remove auger sections (A) from hoppers.

7200OM,4,6WM,AR -19-29MAY92-2/5

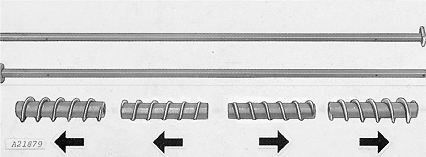

Position new auger sections on the floor (as illustrated above) so the flights on the auger sections will carry the fertilizer to the outside ends in each hopper.

Remove cotter pins holding old auger sections on shafts and slide old auger sections off shafts.

7200OM,4,6WM,AR -19-29MAY92-3/5

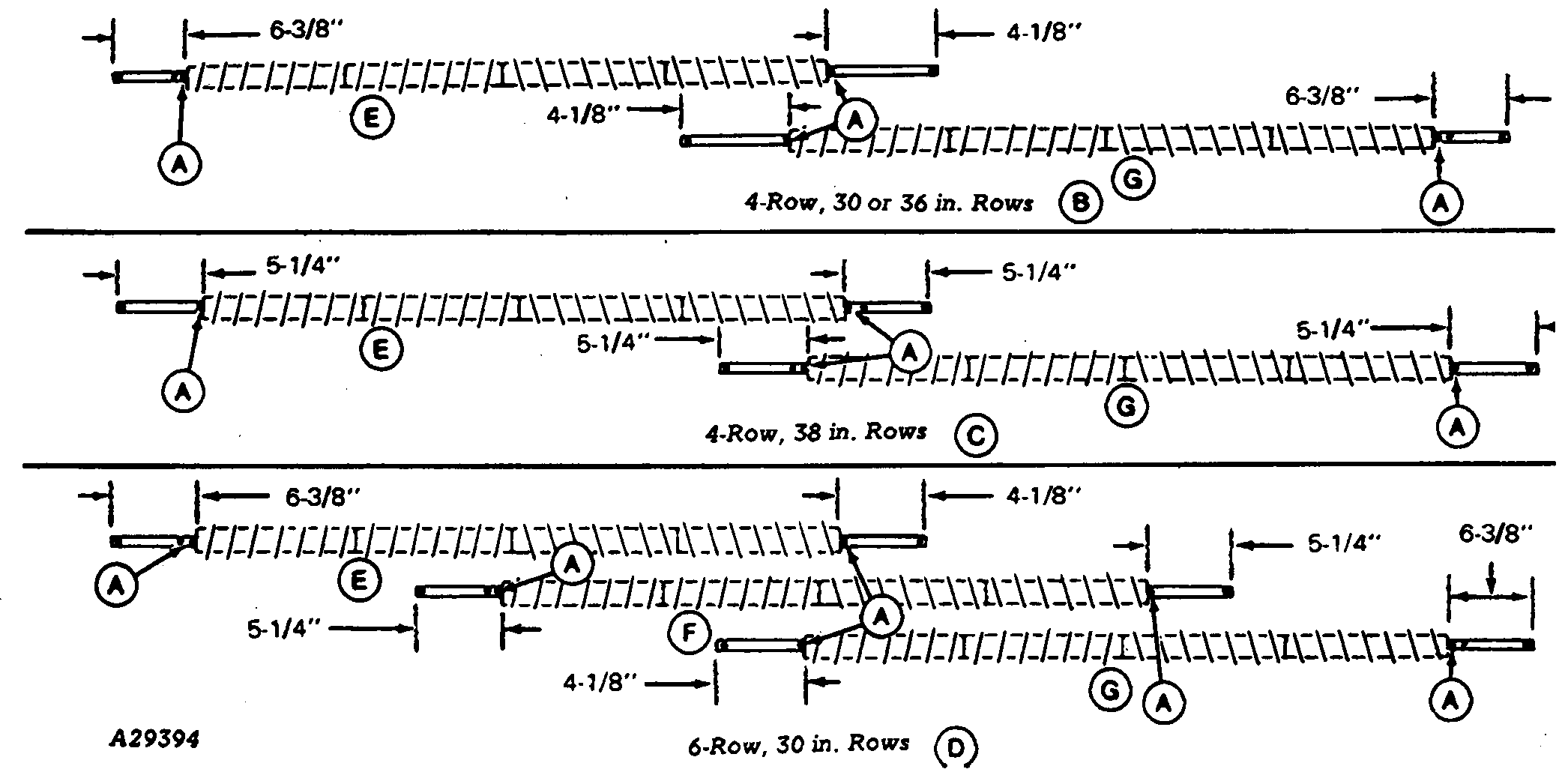

A-Cotter Pin
B-4-Row Narrow

C-4-Row Wide
D-6-Row Narrow

E-Left-Hand Side of Planter
F-Middle of Planter

G-Right-Hand Side of Planter

Install new auger sections on shafts as shown. Attach with 15/16 x 1-3/8 x .105 in. washers and 5 x 40 mm cotter pins.

7200OM,4,6WM,AR -19-29MAY92-4/5

Determine desired fertilizer rate from charts in the Attachment section and install auger sections on 1118 mm (44 in.) shaft as shown at right. Attach with 15/16 x 1-3/8 x .105 in. washers as required and 5 x 40 mm cotter pins.

Install augers on shaft so augers move fertilizer to spouts at ends of the hopper when the planter is moving forward. Augers must be positioned with smaller end of taper toward center of hopper.

7200OM,4,6WM,AR -19-29MAY92-5/5
