Changing Input Sprocket Combinations (1750 Conservation)

Consult appropriate planting rate chart to determine desired sprocket combinations.

1. Remove spring (A) from chain tightener.

A28904

7200OM,4,6WM,G1 -19-13MAY92-1/4

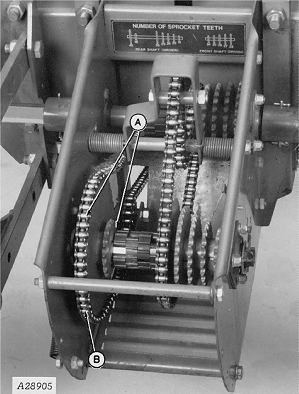

2. Remove required number of rubber sprocket spacers (A).

3. Remove chain from input sprocket (B).

A28905

7200OM,4,6WM,G1 -19-13MAY92-2/4

4. Locate input sprocket until desired sprocket is aligned with chain tightener sprockets (A).

5. Replace chain on sprocket. Replace rubber sprocket spacers (B).

A28906

7200OM,4,6WM,G1 -19-13MAY92-3/4

6. If chain is aligned on high-range input sprocket, locate spring in hole (A) of chain tightener. Arm (B) must point rearward as shown.

7. If chain is installed on low-range input sprocket, locate spring in hole (C) of chain tightener. Arm (D) must point forward.
