Changing Row Widths (4-Row and 6-Row Narrow)

Your planter is available in the following row widths:

4-Row - 51 cm (20 in.), 76 cm (30 in.), 91 cm (36 in.) and 97 cm (38 in.) row widths.

6-Row Narrow - 70 cm (27.5 in.) row width. (1750 Conservation) 76 cm (30 in.) row width.

A56570OM,15,A -19-13MAY96-1/4

To change row widths on 4-row, 91 cm (36 in.) and 97 cm (38 in.) planters, proceed as follows:

Empty hoppers and lower the planter until the double-disk seed openers rest on the ground.

Remove cotter pins (A). Remove drill shafts (B) from planting units.

A28878

A56570OM,15,A -19-13MAY96-2/4

A44472

Illustrated on 4-Row Planter

Loosen U-bolts (A) on all planting units.

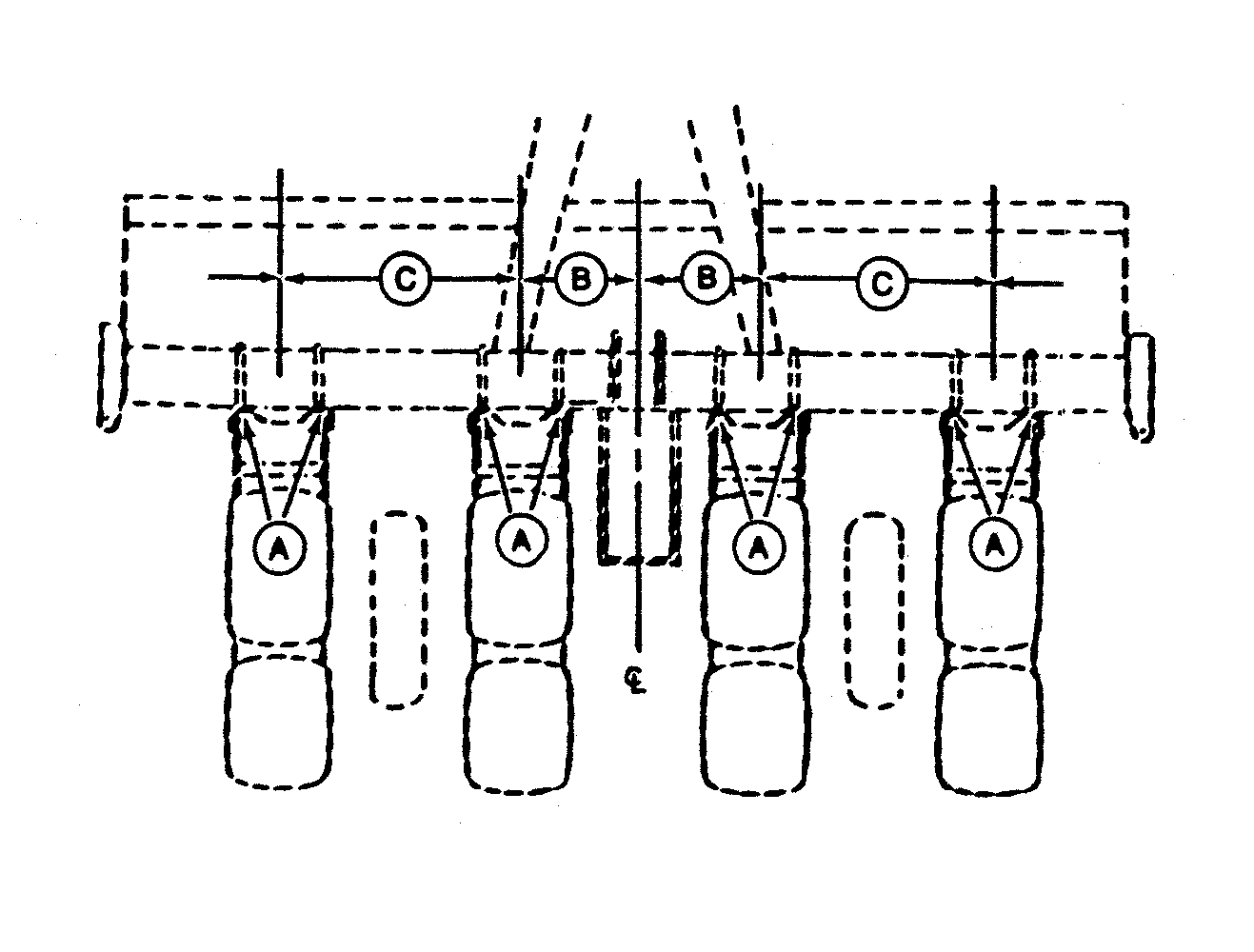

Measuring from the planter center line to the center of planting units, position inside planting units one-half the desired row spacing (B).

Position outside planting units at the desired row spacing (C).

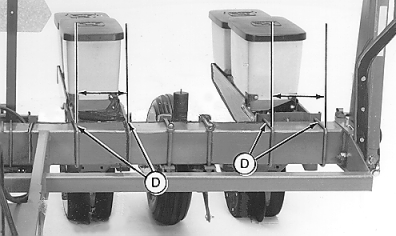

Check to be sure U-bolts (D) are vertically straight. Tighten U-bolts uniformly to 204 N·m (150 lb-ft) of torque.

A44754

Illustrated on 4-Row Planter

A56570OM,15,A -19-13MAY96-3/4

Insert drill shaft (A) through planting unit bearings and attach to driver and coupler by replacing cotter pin (B).

NOTE: If drill shaft does not align properly with transmission shaft, loosen planting unit bearings, re-align shaft, and tighten bearings.

Check all drive components for interference. Check planting unit openers to insure seed tubes and openers are free of dirt or other foreign objects.

A39172

R.H. Drill Shaft Illustrated

A56570OM,15,A -19-13MAY96-4/4
