Set Valve Controls

SCV I: Press touch control switch I to adjust raise/lower planter. Adjust flow control knob (B) for flow. Adjust time detent knob (C) to 6 seconds, and readjust in field as required.

SCV II: Press touch control switch II to set up markers. Adjust flow control knob (B) for flow. (Cylinders are orificed). Adjust time DETENT knob (C) to 10 seconds and readjust in field for proper time to extend and retract.

SCV III: Press touch control switch III (D) to set flow to hydraulic vacuum motor. Adjust flow control knob (B) to desired vacuum. Start with low flow setting at 2.0 on display and adjust for correct vacuum level after seeds are on the disk. Set time DETENT knob (C) to CONSTANT. Push tractor control lever (A) to detent and release to operate motor. To turn off hydraulic vacuum motor place control in FLOAT.

N48137
N48109

SCV III is Illustrated

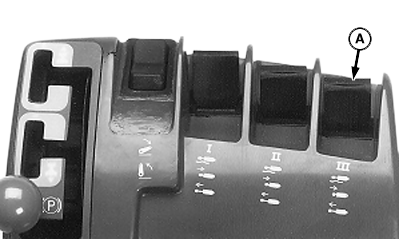

A-Control Lever

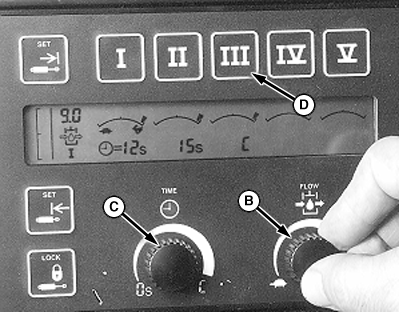

B-Control Knob
C-Detent Knob
D-Control III Switch

SCV # FUNCTION FLOW DETENT (TIME)
1 Planter Raise/Lower Start at 10. Adjust for lift time 6 seconds or as required for full extend/retract
2 Markers Start at 8. (Cylinders are orificed) 10 seconds or as required for full extend/retract
3 Vacuum Motor Start at 2.0 and adjustas required to obtain desired vacuum pressure Constant (C)
