Liquid Fertilizer Rate Chart

NOTE: The rate charts are effected by many factors such as wheel slippage and material used, therefore, this chart should be used only as a guide.

1. Refer to rate chart and select desired rate of gallons per acre.

2. Select pump setting and adjust pump.

3. Select orifice number and install into special fitting.

4. Set high or low range as illustrated.

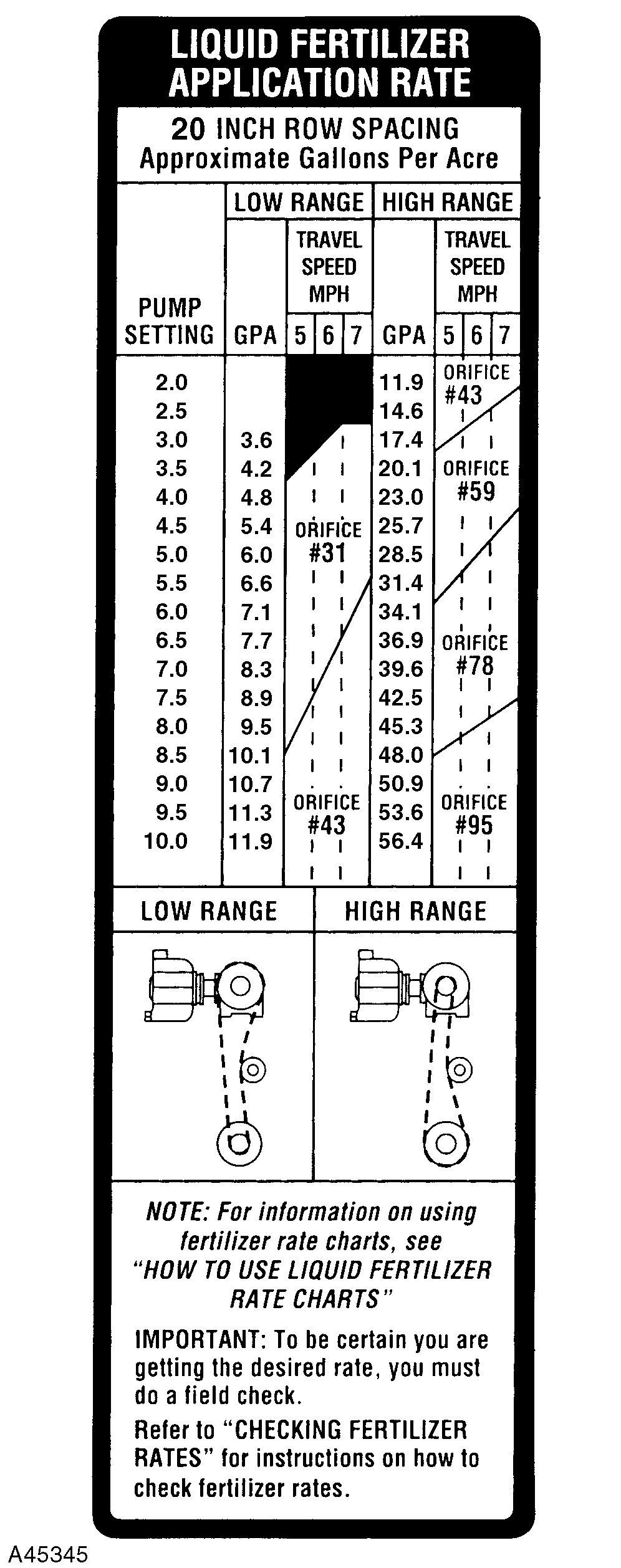

A45345

A56574,CG -19-25APR97-1/2

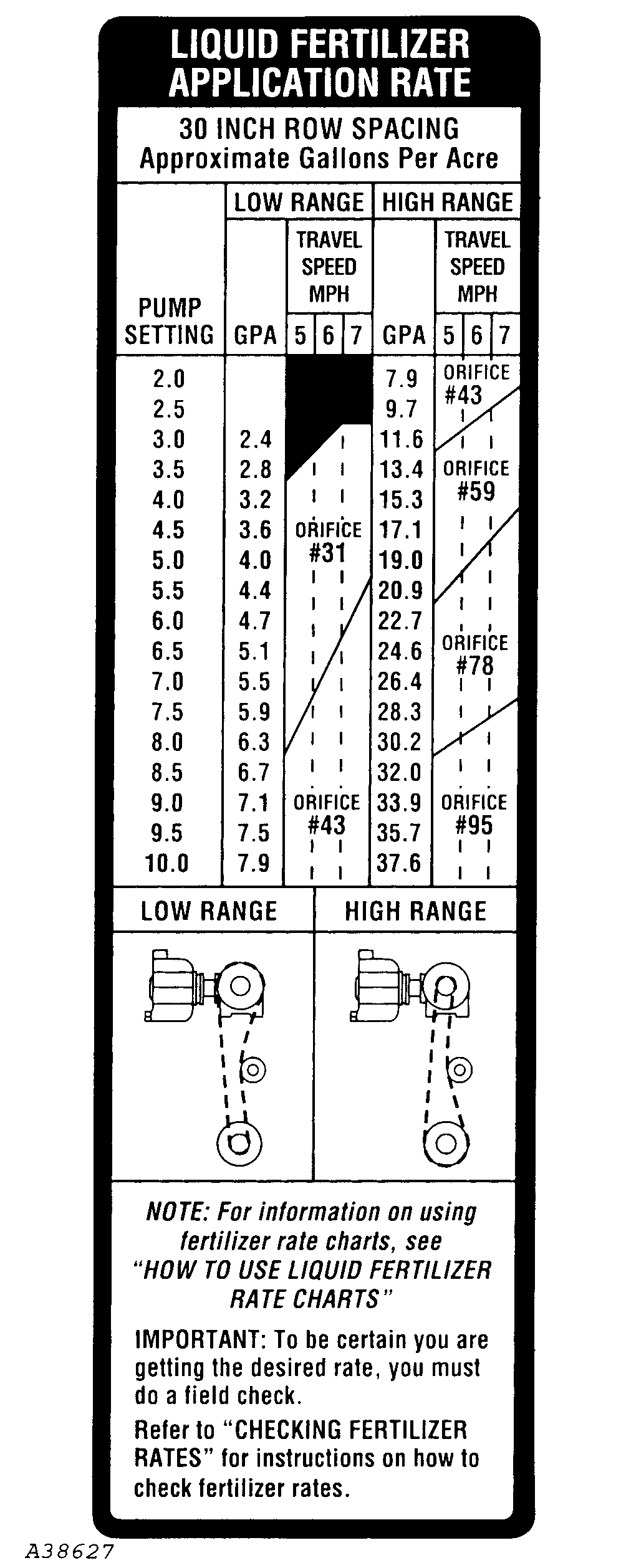

A38627

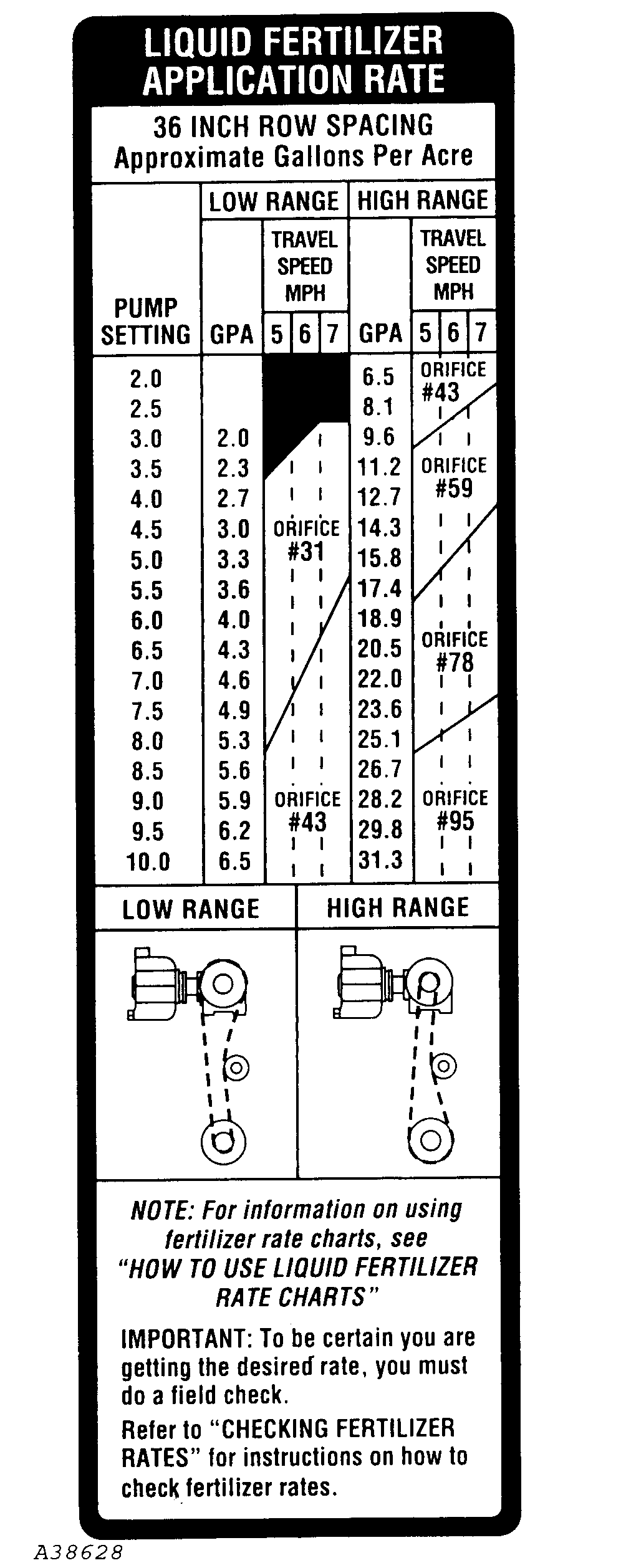

A38628

A56574,CG -19-25APR97-2/2
