Leveling Planter (4-Row and 6-RN)

Periodically check the planter to be certain the planting units are running level.

Lower planter to planting position with the bottom of main frame tube approximately 510 to 560 mm (20 to 22 in.) above the ground.

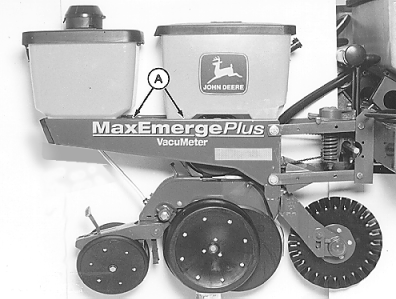

When planting, the top of hopper support (A) should be parallel to the ground.

A44769

OM56570A,K -19-24APR97-1/2

The bottom of the hitch panels should be approximately 360 mm (14 in.) above the ground and parallel to the ground.

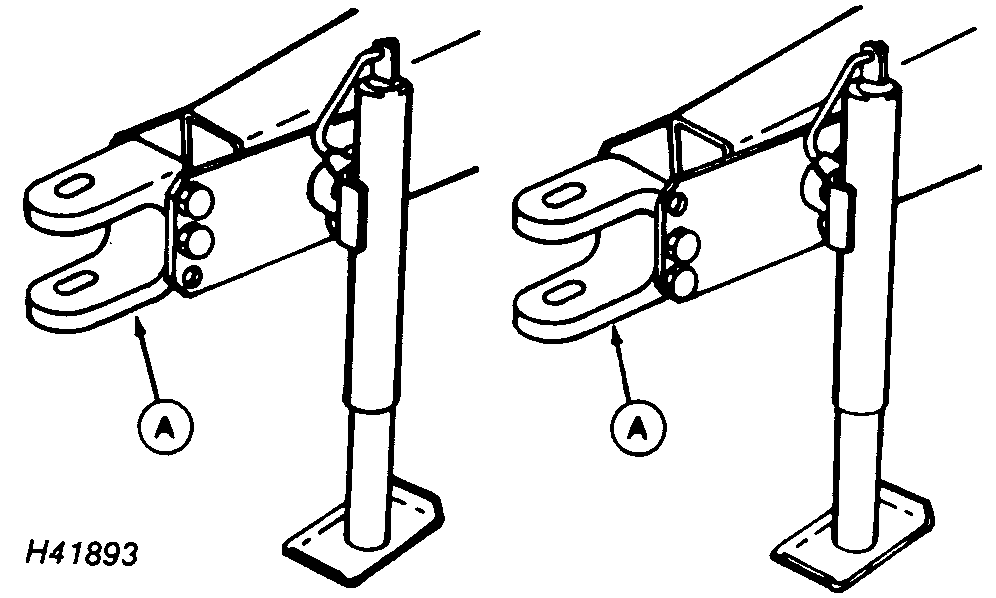

If hitch adjustment is required to attain 360 mm (14 in.) dimension, raise or lower hitch by installing clevis (A) as shown. The clevis is reversed in the lower illustration.

H41893

Middle Positions

H41894

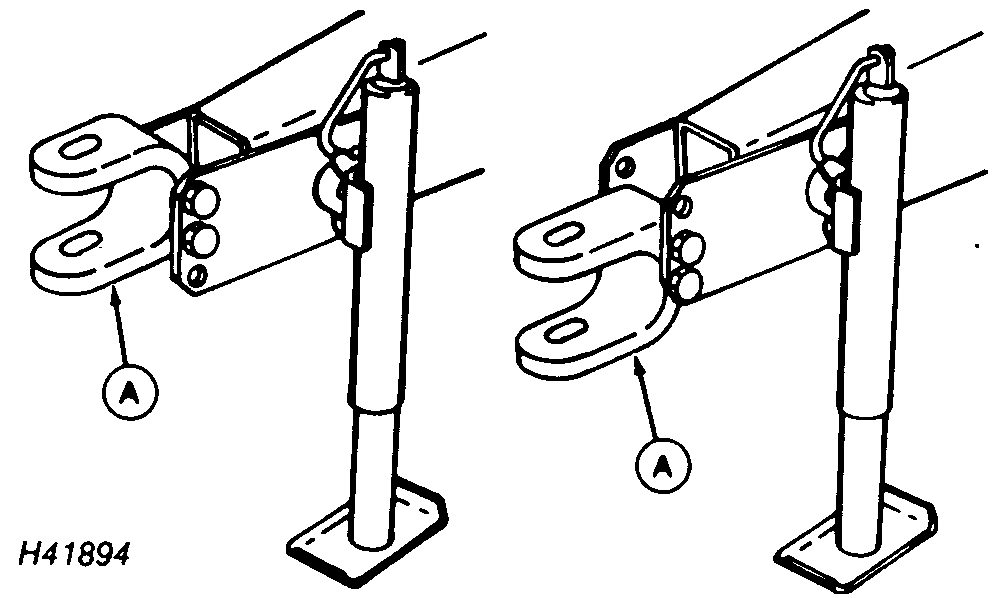

To Lower Hitch To Raise Hitch

OM56570A,K -19-24APR97-2/2
