Raise Support Stand (6-RW and 8-RN)

With planter in raised position, remove spring locking pin and drilled pin (A). Pivot stand up.

Install drilled pin (A) and spring locking pin as shown.

A31561
A31558

OM56570,AD -19-13MAY96-1/2

Raise planter with tractor hydraulic system.

If equipped with single-disk fertilizer openers, check to be sure there is adequate ground clearance between the blade and the ground.

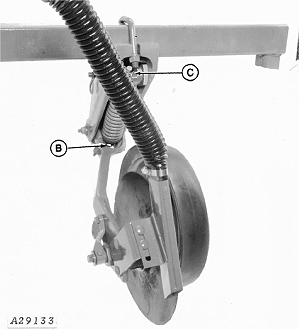

If necessary, loosen jam nut (C) and tighten spring adjusting bolt (B) until adequate ground clearance is achieved. Retighten jam nut.

NOTE: Do not tighten spring bolt so dimension (A) is less than 635 mm (25 in.). Opener may not achieve full depth if dimension is less than 635 mm (25 in.).
