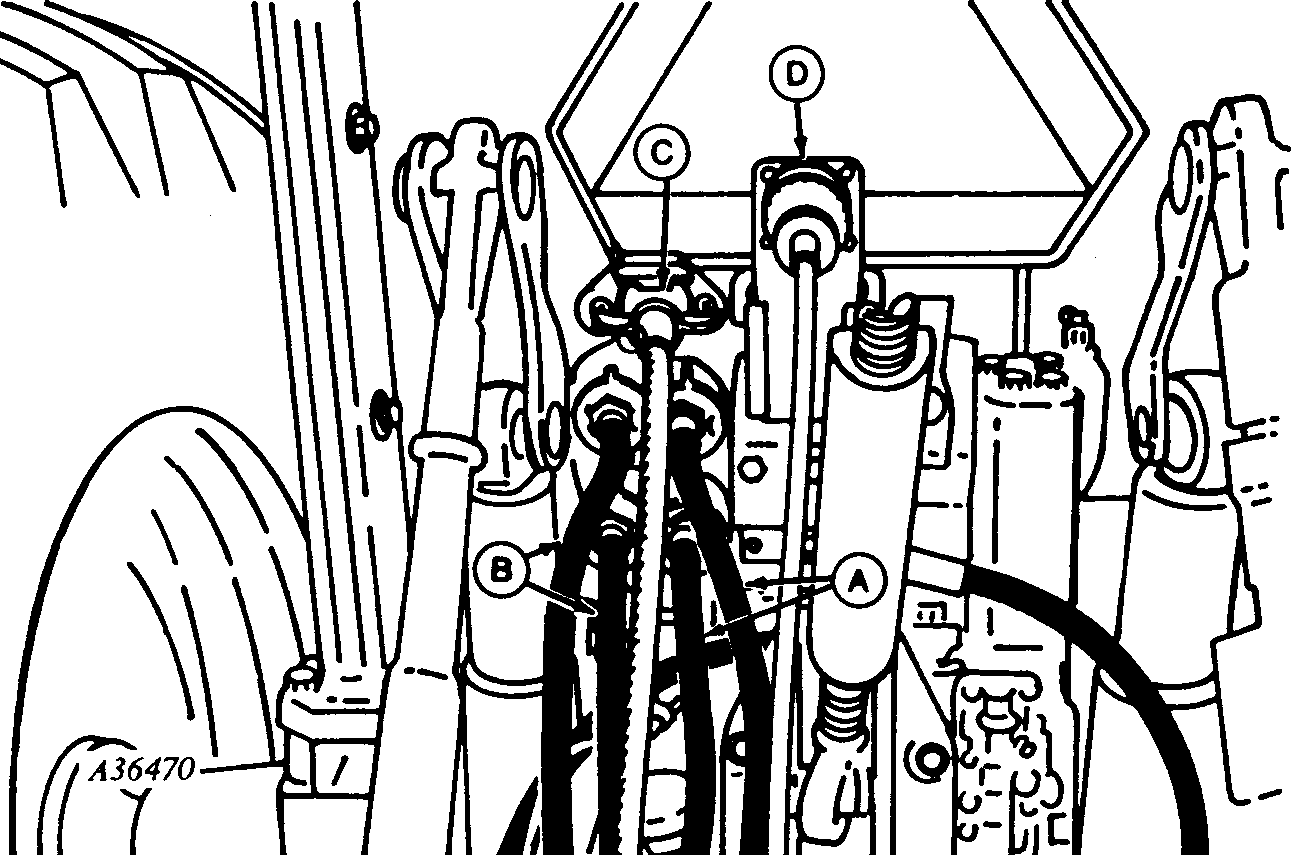

A-Lift Hoses

B-Marker Hoses

C-Seven Pin Connector

D-Monitor Wiring Harness

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

Connect hydraulic lift hoses (A) to breakaway coupler number 1.

If planter is equipped with independent markers, connect marker hoses (B) to breakaway coupler number 2.

Connect the planter warning lamp harness to the seven-pin connector (C).

Connect monitor wiring harness (D).

OM56570,N -19-24APR97-1/1
