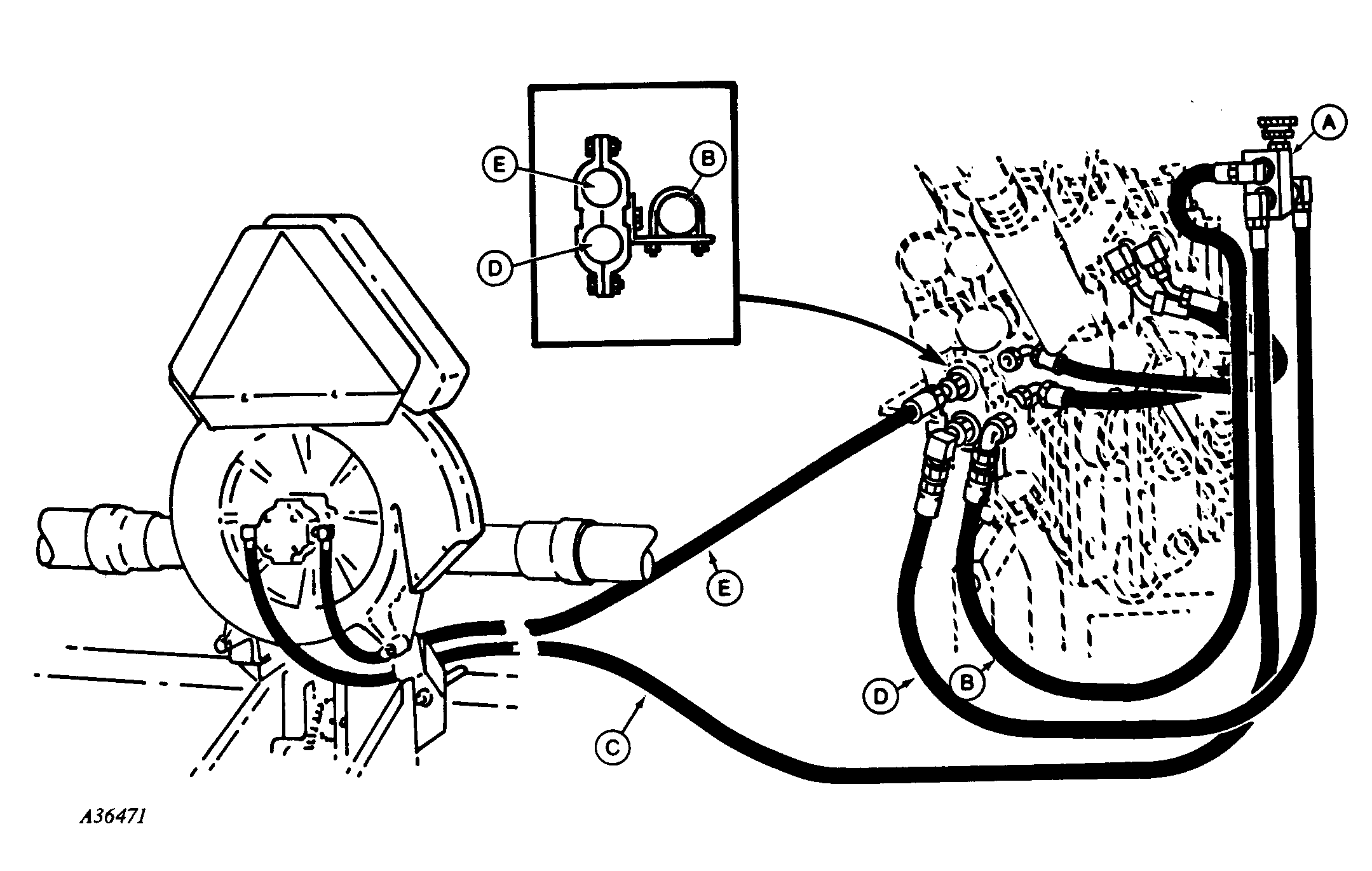

A-Control Valve
B-Load Sensing Hose

C-Regulated Pressure Hose

D-Pressure Hose

E-Return Hose

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regulary. Replace damaged hoses.

IMPORTANT: Damage to blower motor may occur if hoses are assembled incorrectly. Check hydraulic connections before operating vacuum motor.

Install flow control valve assembly (A) in socket.

Install load sensing hose (B), pressure hose (D) and return hose (E).

Be sure regulated pressure hose (C) is connected to left-hand (INLET) side of blower motor.

Flow control valve (A) will be used to control blower speed.

OM56570,R -19-24APR97-1/1
