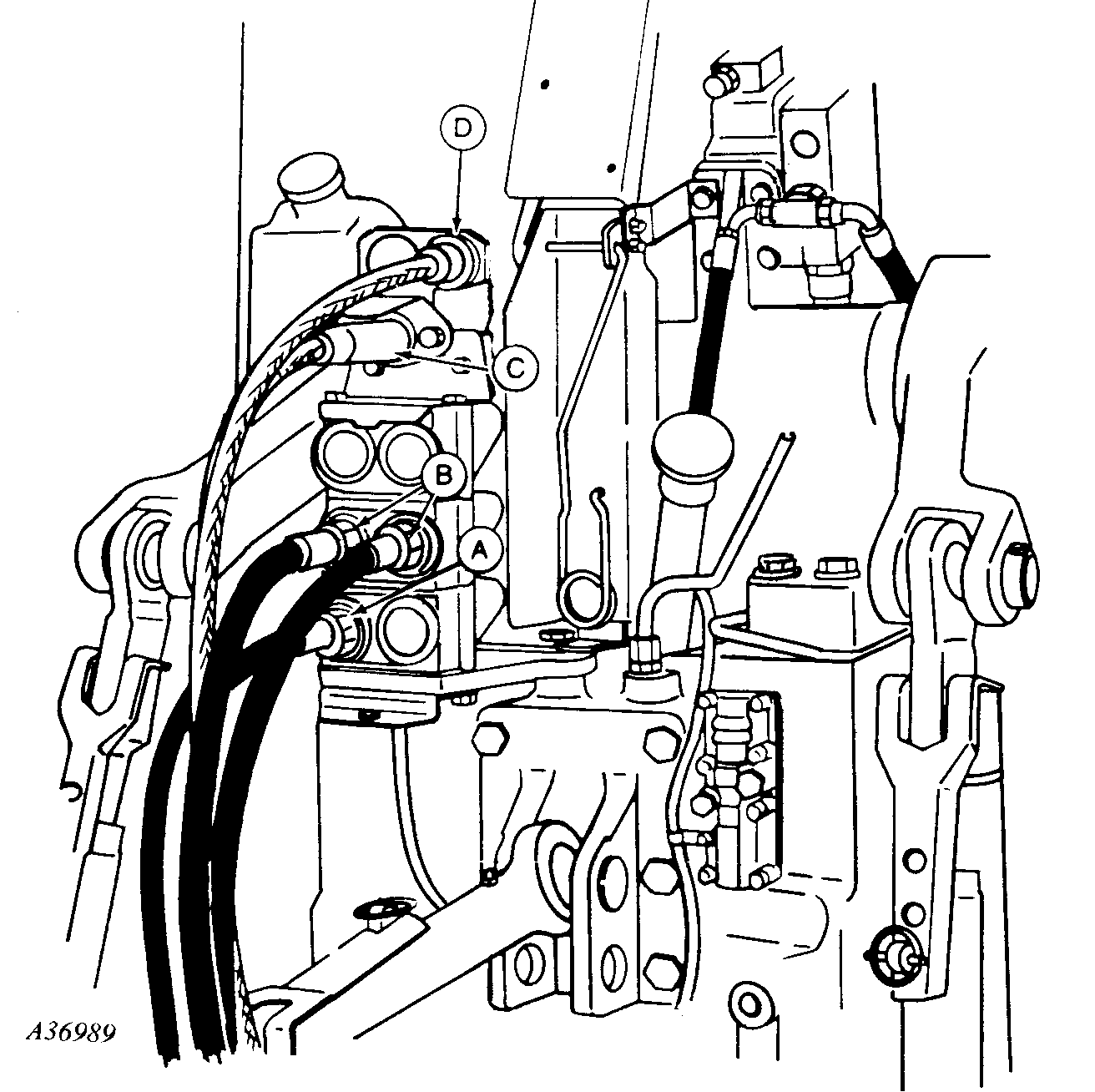

A-Lift Hose

B-Marker Hoses

C-Seven-Pin Connector

D-Wiring Harness

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

Hydraulic lift hose (A) previously connected to facilitate attaching planter to tractor.

If planter is equipped with independent markers, connect marker hoses (B) to breakaway coupler number 2.

Connect the planter warning lamp harness to the seven-pin connector (C).

Connect monitor wiring harness (D).

OM60109A,40A -19-08MAY98-1/1
