Detaching from Tractor (6-RW and 8-RN)

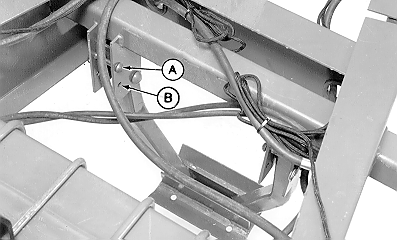

With planter in raised position, remove drilled pin (A) and spring locking pin. Pivot jackstand down.

CAUTION: Avoid injury and machine damage. DO NOT install pin in lower hole (B) with jackstand in the lowered position. Planter may roll backwards when unhooked from tractor if pin is installed in hole (B).

Attach with drilled pin (A) and spring locking pin as shown.

OM60109A,50A -19-08MAY98-1/2

Remove safety chain from tractor drawbar support and safety chain support (B).

Raise hitch with hydraulics until weight of hitch is transferred from tractor drawbar to jackstand.

Remove hitch pin (A) from hitch and tractor drawbar.

Drive tractor forward until drawbar clears hitch. Lower planter to ground.

CAUTION: To avoid injury from escaping hydraulic oil under pressure, relieve the pressure in the system by putting the SCV lever in float with tractor running, then stopping engine.

Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

Disconnect all hydraulic hoses.

Disconnect warning light harness from seven-pin connector.

Disconnect monitor wiring harness and disconnect radar wiring harness.

Attach dust cover onto planter harness connector.

OM60109A,50A -19-08MAY98-2/2
