Connecting Hydraulic Lift Hoses and COMPUTER TRAK Monitor (4-Row and 6-RN)

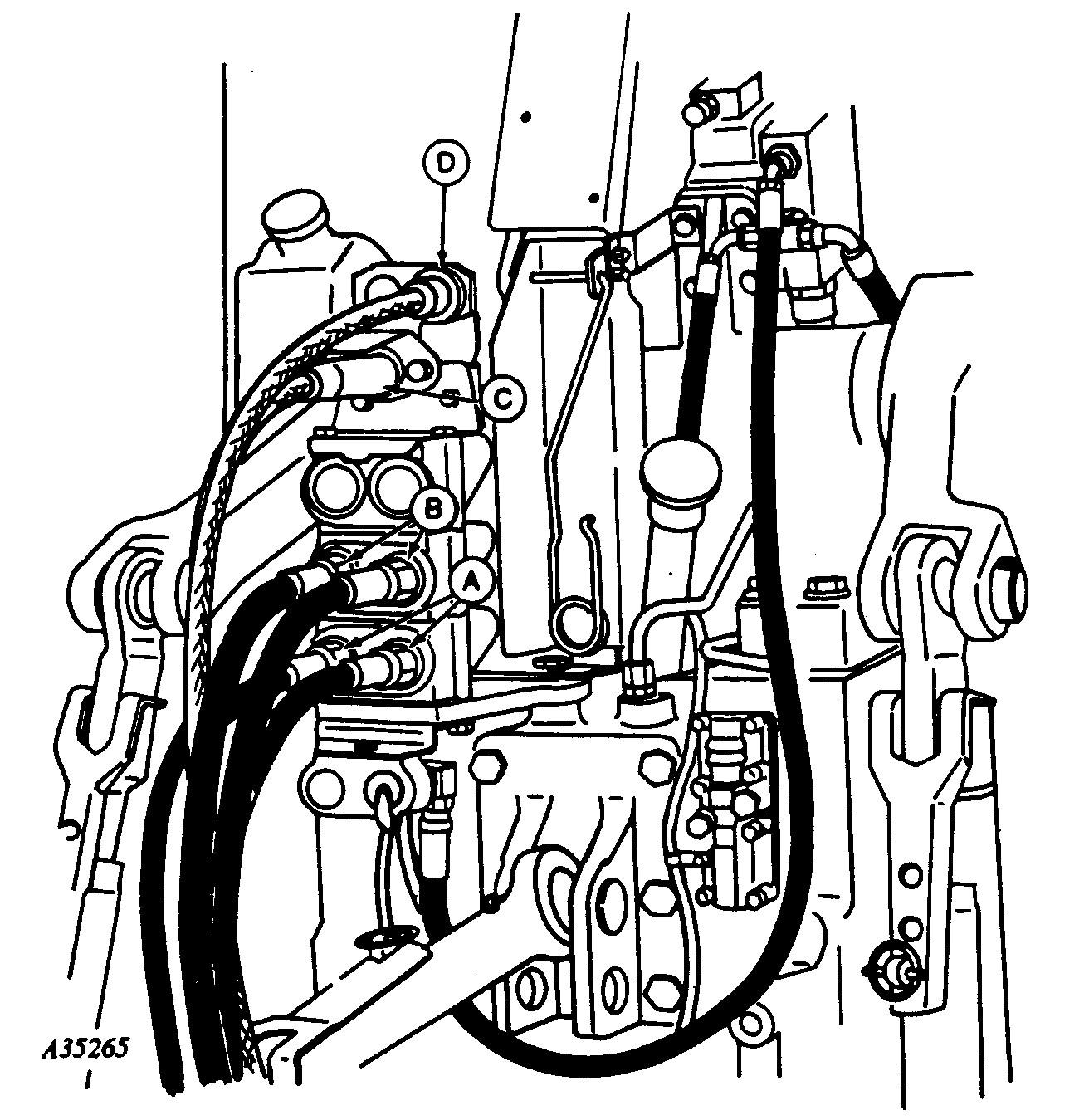

A35265


A-Lift Hoses


B-Marker Hoses


C-7-Pin Connector


D-Wiring Harness

causym CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

If planter is equipped with independent markers, connect planter lift hoses (A) to breakaway coupler

number one and connect marker hoses (B) to coupler two.

Connect the planter warning lamp harness to the seven-pin connector (C).

Connect monitor wiring harness (D).

OM60109,40A -19-08MAY98-1/1
