A-Motor Adapter

B-Control Valve

C-Return Hose

D-Pressure Hose

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

IMPORTANT: Damage to blower motor may occur if hoses are assembled incorrectly. Check hydraulic connections before operating the vacuum motor.

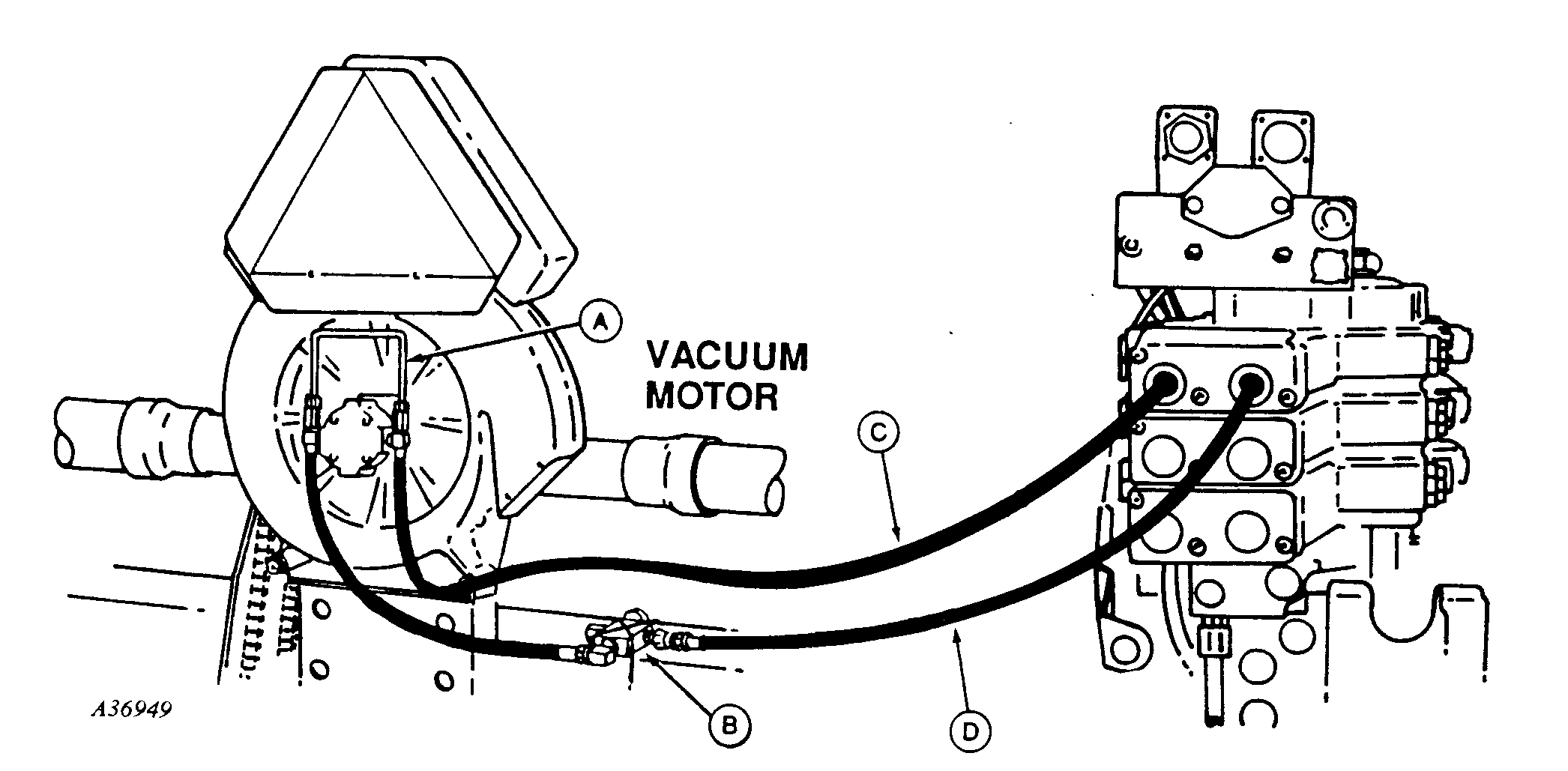

Attach vacuum motor adapter (A). Position flow control valve (B) on frame with valve flow open.

Insert hose (C) into left-hand side of SCV number III. Insert pressure hose (D) into right-hand side of SCV number III.
