Attaching to Tractor (6-RW and 8-RN)

Position tractor with drawbar approximately 305 mm (12 in.) ahead of the planter hitch.

OM60113,25AB -19-25APR97-1/4

Align planter hitch with tractor drawbar using planter hydraulic system.

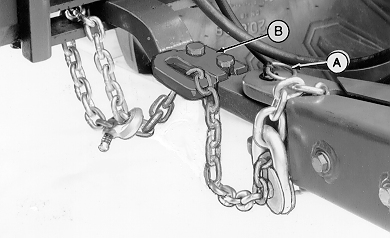

Back tractor into planter clevis and attach with hitch pin (A) and spring locking pin.

Route safety chain through support (B). Wrap chain around tractor drawbar support and attach as shown.

OM60113,25AB -19-25APR97-2/4

Raise planter and remove spring locking pin and drilled pin (A).

OM60113,25AB -19-25APR97-3/4

Pivot jackstand up and install pin (A) and spring locking pin.

OM60113,25AB -19-25APR97-4/4
