Install Service Locks (1750 Conservation)

CAUTION: Always install service locks when working around or near planter.

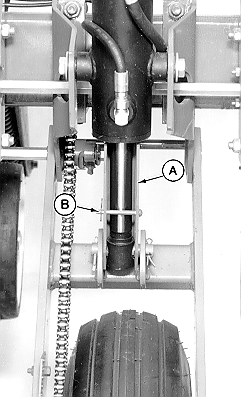

Raise planter to transport position with tractor remote cylinder operating lever. Pivot service lock (A) into position on wheel module cylinder rods and attach with drilled pin (B) and spring locking pin.

NOTE: Service locks are provided for added safety when performing normal maintenance and adjustments with the planter raised. They are not transport locks. The planter hydraulic system requires that the wheels float up and down in transport to properly distribute frame weight to the individual wheel modules.

OM62298,160B -19-08MAY98-1/1
