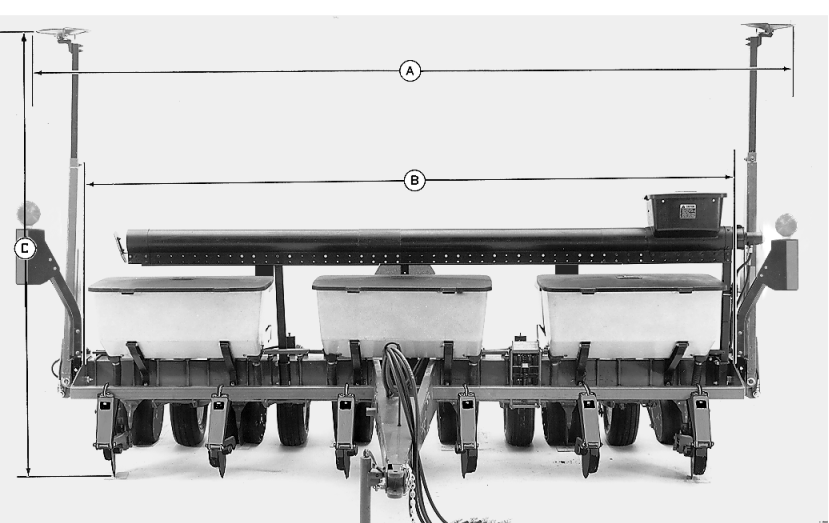

Planter Dimensions (4-Row and 6-RN)
|
| Model | Dimension "A" | Dimension "B" | Dimension "C" |
|---|---|---|---|
| 4-Row Narrow | 4 m (13 ft.) | 2925 mm (115-1/8 in.) | 2.7 m (9 ft.) |
| 4-Row Wide | 4 m (13 ft.) | 3435 mm (135-1/4 in.) | 2.8 m (9 ft. 4 in.) |
| 6-Row Narrow | 4.8 m (15 ft. 8 in.) | 4280 mm (168-1/2 in.) | 3.5 m (11 ft. 6 in.) |
OM62298,175B -19-08MAY98-1/2 |
|

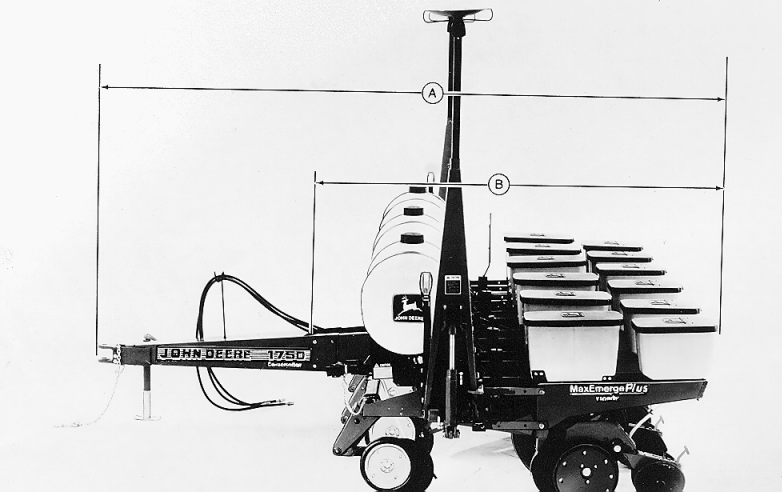

| Model | Dimension "A" | Dimension "B" |
|---|---|---|
| 4-Row | 3970 mm (162 in.) | 2445 m (96-1/4 in.) |
| 6-Row | 3970 mm (162 in.) | 2445 m (96-1/4 in.) |
OM62298,175B -19-08MAY98-2/2 |
