Connecting Hydraulic Hoses and Monitor Harness

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

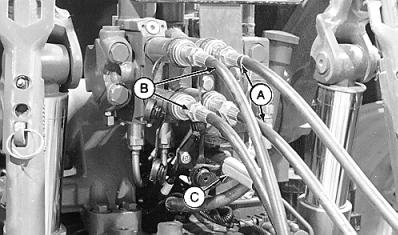

1. Connect hydraulic lift hoses (A) to breakaway coupler number 1.

NOTE: For 6W-8N Planters, install single lift hose into bottom of right-hand coupler.

2. If planter is equipped with independent markers, connect marker hoses (B) to breakaway coupler number 2.

3. Connect planter warning lamp harness (C) to the seven-pin connector.

4. Connect monitor wiring harness.

OM62298,35A -19-08MAY98-1/1
