Marker Length

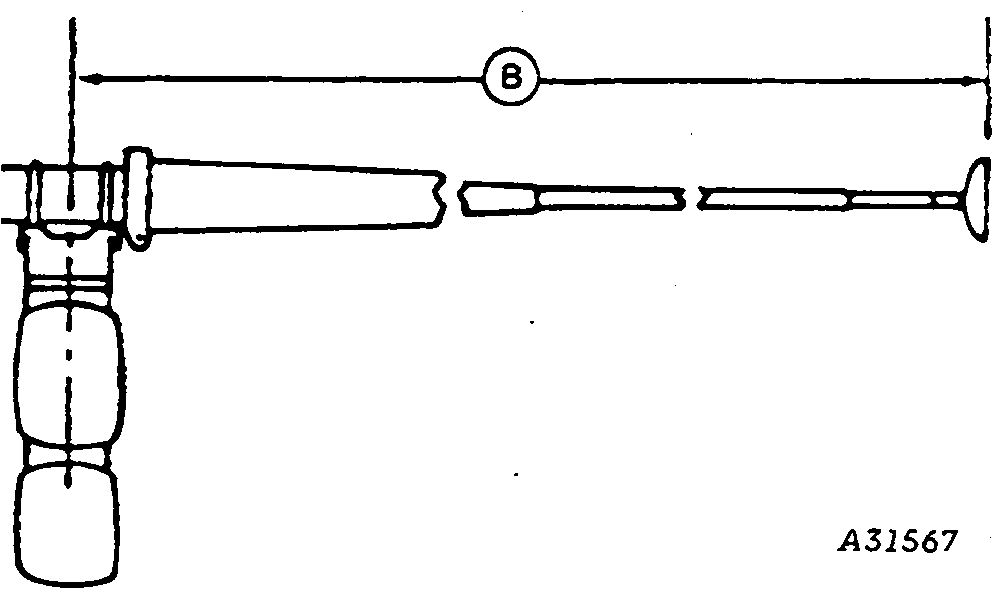

Loosen jam nuts and set screws (A) on marker and, with the marker in the down position, adjust to length shown below. Dimension (B) is measured from the center line of the planting unit to the marker disk. This is an approximate dimension and should be checked in the field.
| Planter |
Row Spacing |
Dimension "B" |
| 4-Row |
51 cm (20 in.) |
1270 mm (50 in.) |
| |
76 cm (30 in.) |
1905 mm (75 in.) |
| |
91 cm (36 in.) |
2286 mm (90 in.) |
| |
97 cm (38 in.) |
2413 mm (95 in.) |
| |
| 6-Row |
70 cm (27.5 in.) |
2445 mm (96.25 in.) |
| |
76 cm (30 in.) |
2667 mm (105 in.) |
| |
91 cm (36 in.) |
3200 mm (126 in.) |
| |
97 cm (38 in.) |
3378 mm (133 in.) |
| |
| 8-Row |
76 cm (30 in.) |
3429 mm (135 in.) |
NOTE:

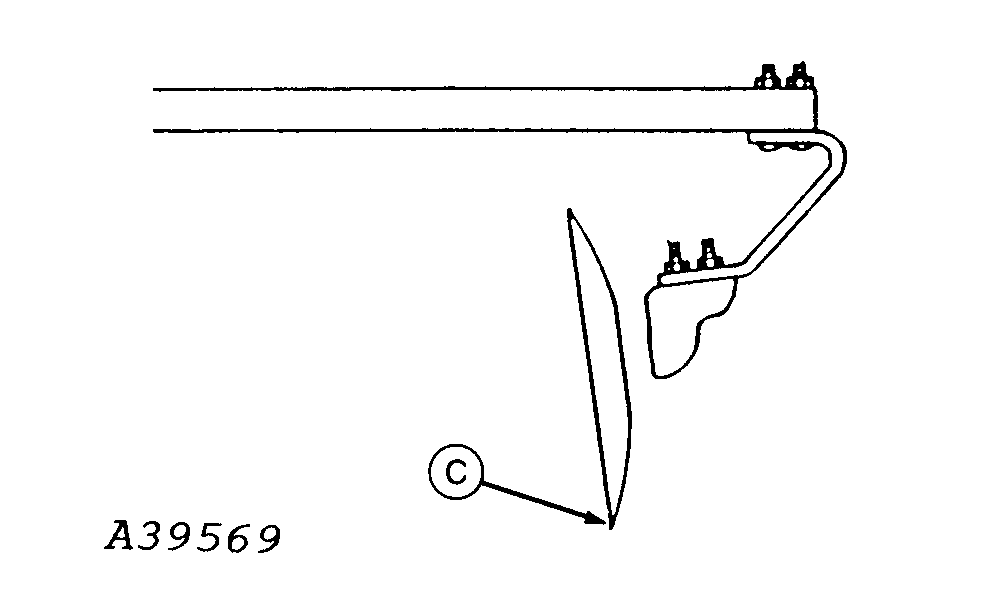

On 4-row narrow planters with 76 cm (30 in.) spacing, use AA37527 Marker Bracket Kit to mark to tractor center line. Dimension (B) will still be from unit center line to bottom of marker disk (C) as shown in bottom illustration.
|
Optional Notched Marker Disk
|
