Changing Input Sprocket Combination (1750 Standard)

Consult appropriate planting rate chart to determine desired input sprocket combinations.

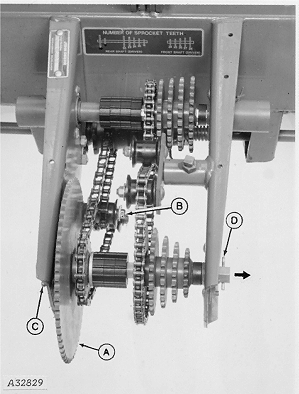

1. If input combination sprocket (A) is to be reversed, loosen tightener (B), remove cotter pin (C) and slide rear driver shaft (D) to the right until sprocket can be removed from shaft.

2. Reverse combination sprocket (A) and install on driver shaft (D).

3. Slide shaft through left-hand side of seed transmission and attach with cotter pin (C).

A-Combination Sprocket
B-Tightener
C-Cotter Pin
D-Driver Shaft

OM62298,75C -19-08MAY98-1/1
