Vacuum Level, Baffle Position and Vacuum Meter Brush for Soybeans

Vacuum level for soybeans is set at 8 in.

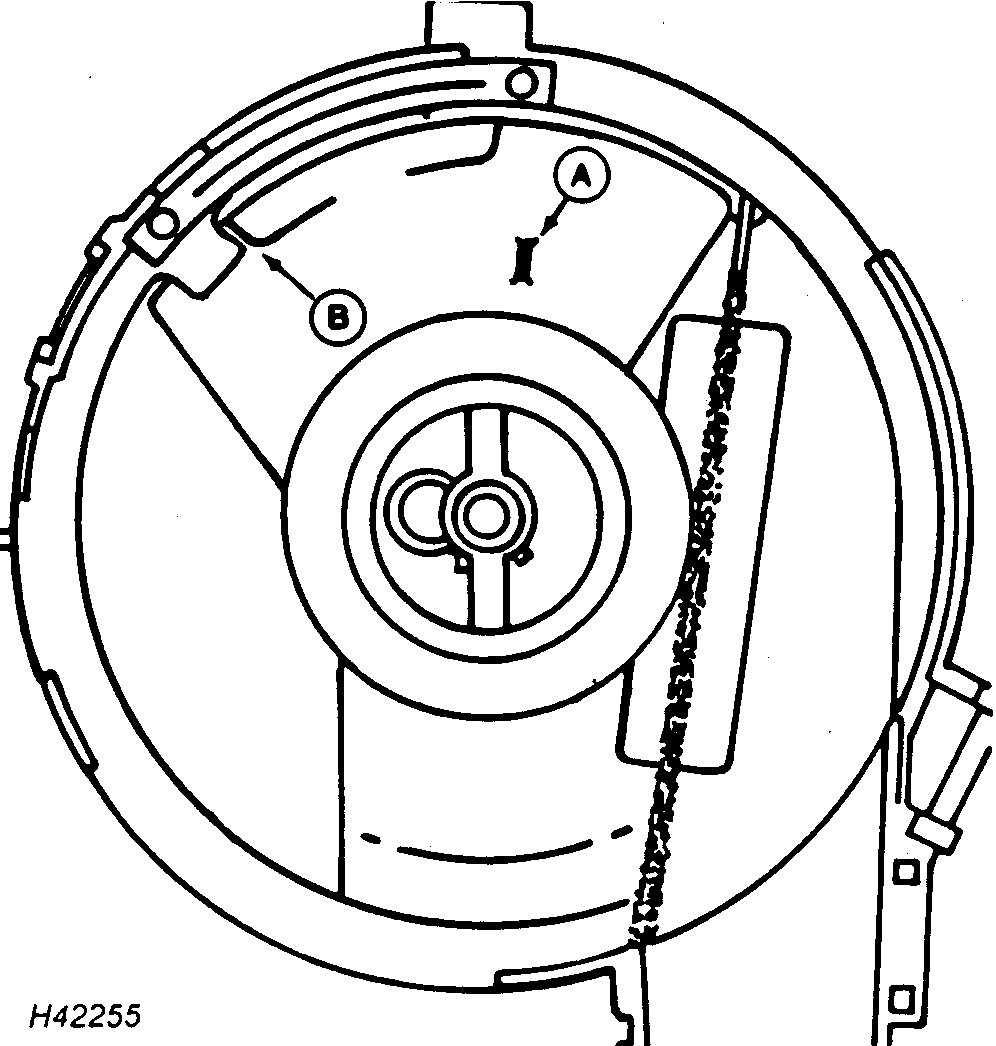

VACUUM METER BAFFLE

Move tab (A).

Soybeans, upper position (B).

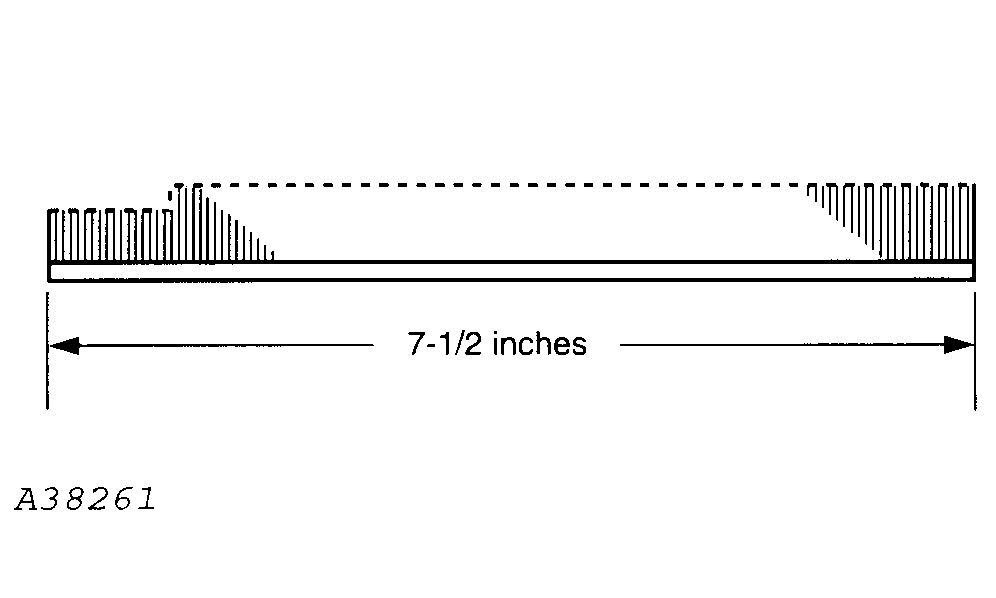

VACUUM METER BRUSH

Use the (regular) long brush.

Talc Lubricant, 1/2 cup, if treated.

NOTE: If sweet corn double eliminator has been installed, loosen set screw in cam nut and rotate cam nut to move tip of eliminator AWAY from center of meter housing as far as possible.
