In-Furrow Press Wheel

NOTE: In moist soil, it may be necessary to lock press wheel out of use.

1. To raise or lower in-furrow press wheel, remove spring locking pin (A).

2. Pull up on T-handle (B) to release cable from bracket.

3. With tee handle (B) against bracket, in-furrow press wheel will be lower for use. With T-handle (B) pulled out and crimped cable stop (C) against bracket, in-furrow press wheel is raised and locked out of use.

4. Install spring locking pin (A).

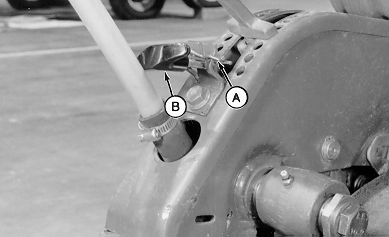

A44284

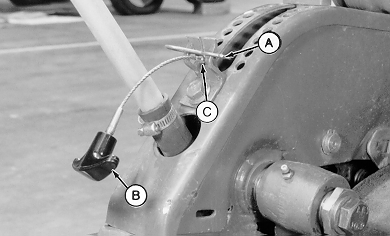

A44285

58077OM,100AB -19-04MAY98-1/1
