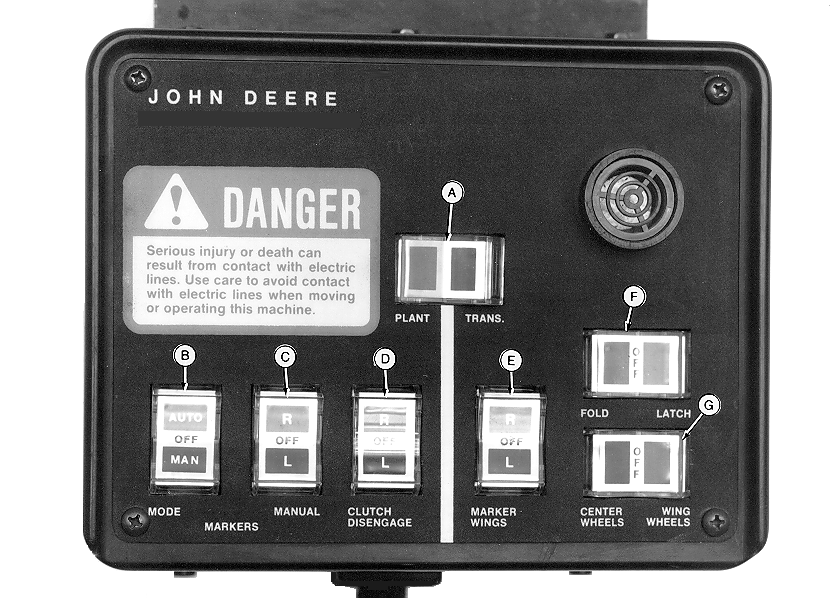

A-Plant or Transport Switch
B-Automatic or Manual Control of Marker Switch

C-Right- or Left-Hand Marker Manual Control Switch
D-Clutch Disengage Switch

E-Right- or Left-Hand Marker Wing Switch
F-Fold and Latch Switch

G-Raises or Lowers the Center or Wing Wheels

A - PLANT-TRANS switch-
When in PLANT position, it allows the planter to be raised or lowered without operating any switches. When in TRANS position, it allows the planter to fold and unfold.

B - MARKERS (MODE) AUTO-MAN switch-
Allows either automatic marker alternating or manual control of the markers.

C - MARKERS (MANUAL) R-L switch-
Used in conjunction with the manual mode switch. It

D - CLUTCH DISENGAGE R-L switch-
Allows you to disconnect the drive on either half of the planter for planting point rows.

E - MARKER WINGS R-L switch-
Used to fold or unfold the right- or left-hand marker wings.

COMPUTER TRAK is a trademark of Deere & Company.

720016ROM,CC,B -19-13AUG97-1/2

F - FOLD-LATCH switch-
Used to fold or unfold and latch the planter for transport.

G - CENTER WHEELS-WING WHEELS switch-
Used to raise or lower the center wheels or the wing wheels.

720016ROM,CC,B -19-13AUG97-2/2
