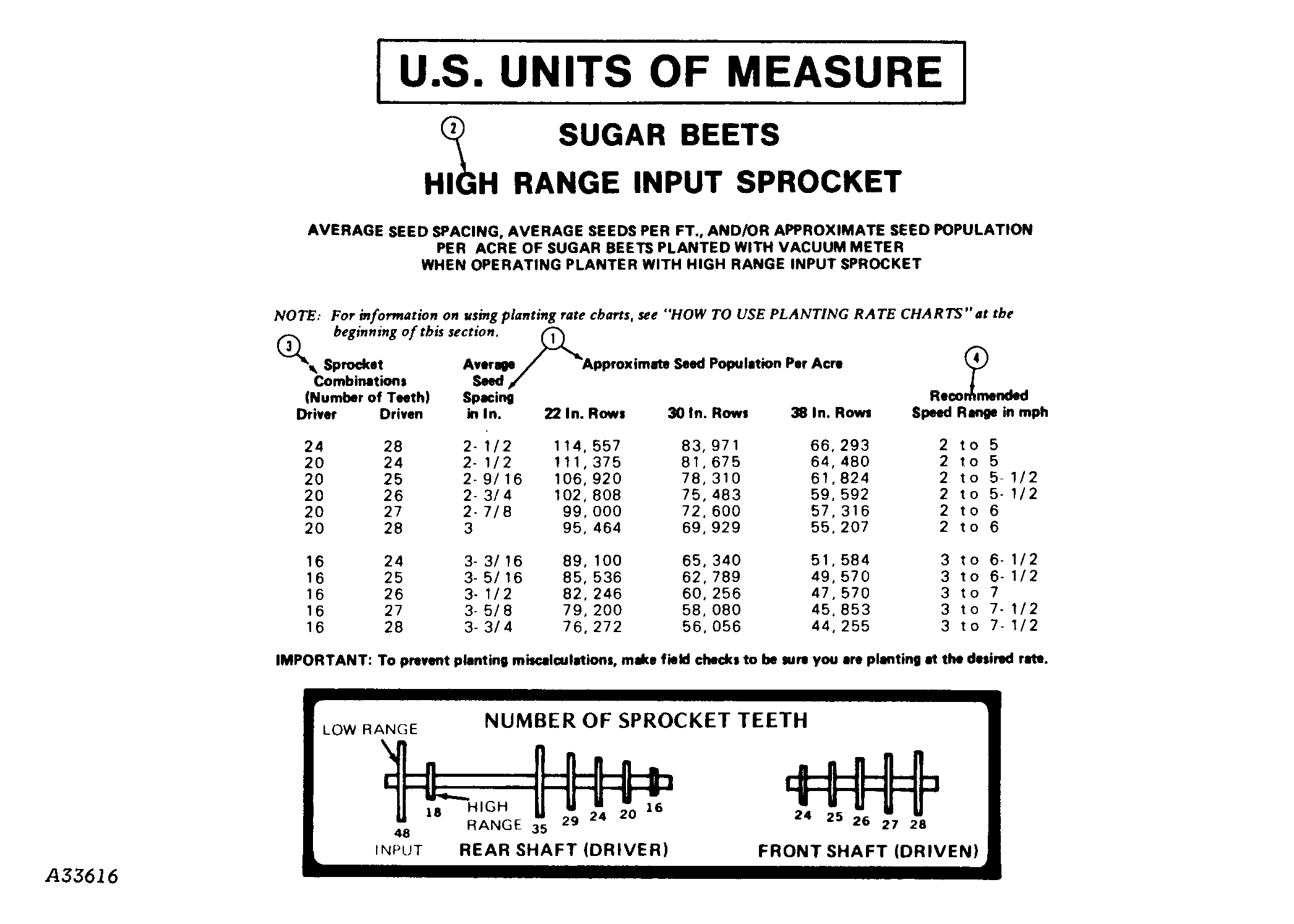

1. Select the desired row spacing or seed population under the proper column.

2. Choose the proper input sprocket:

A higher population will require you to use the high range input sprocket and "HIGH RANGE" chart for that particular seed.

A lower population will require you to use the low range input sprocket and "LOW RANGE" chart for that particular seed.

3. Determine the correct seed drive transmission sprocket combination.

4. Determine the recommended planting speed range. The faster speed in the speed range is for optimum field conditions. Reduce speed and increase unit down force if planting in rough conditions.

IMPORTANT: You must check the actual planting rate in the field. See CHECKING SEED POPULATION in this section.

NOTE: All rates in the following charts are based on typical drive wheel slippage. Drive wheel slippage is affected by crop residue, unit down force, tire pressure and/or soil conditions.
